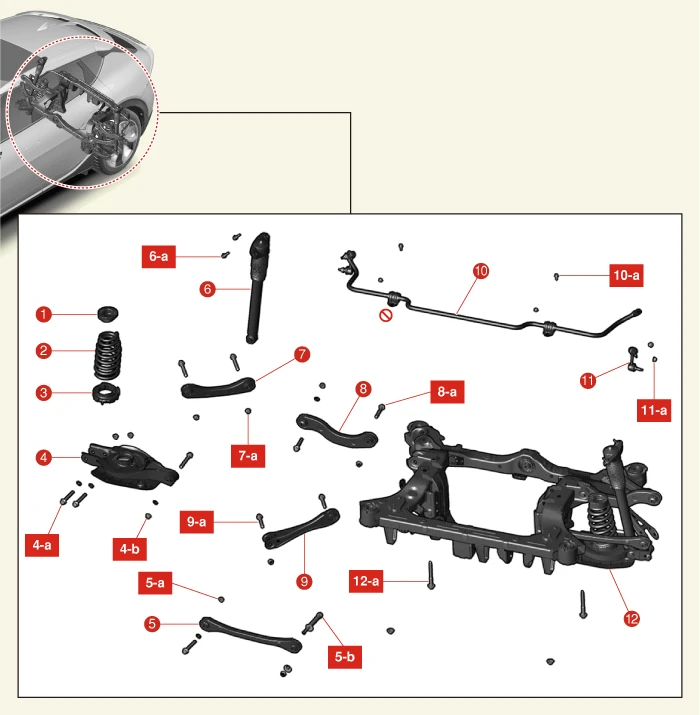

Components and Components Location

1. Rear Coil Spring Upper Pad
2. Rear Coil Spring
3. Rear Coil Spring Lower Pad
4. Rear Lower Arm
4-a. 176.5 - 196.1 N·m (18.0 - 20.0 kgf·m, 130.2 - 144.7 lb·ft)
4-b. 107.9 - 117.7 N·m (11.0 - 12.0 kgf·m, 79.6 - 86.8 lb·ft)
5. Rear Assist Arm
5-a. 117.7 - 137.3 N·m (12.0 - 14.0 kgf·m, 86.8 - 101.3 lb·ft)
5-b. 107.9 - 117.7 N·m (11.0 - 12.0 kgf·m, 79.6 - 86.8 lb·ft)
6. Rear Shock Absorber
6-a. 49 - 63.7 N·m (5.0 - 6.5 kgf·m, 36.2 - 47.0 lb·ft)
7. Rear Upper Arm - Front
7-a. 156.9 - 176.5 N·m (16.0 - 18.0 kgf·m, 115.7 - 130.2 lb·ft)
8. Rear Upper Arm - Rear
8-a. 156.9 - 176.5 N·m (16.0 - 18.0 kgf·m, 115.7 - 130.2 lb·ft)
9. Trailing Arm
9-a. 117.7 - 137.3 N·m (12.0 - 14.0 kgf·m, 86.8 - 101.3 lb·ft)
10. Rear Stabilizer Bar
10-a. 49 - 63.7 N·m (5.0 - 6.5 kgf·m, 36.2 - 47 lb·ft)
11. Rear Stabilizer Bar Link
11-a. 98.1 - 117.7 N·m (10.0 - 12.0 kgf·m, 72.3 - 86.8 lb·ft)
12. Rear Cross Member
12-a. 176.5 - 196.1 N·m (18.0 - 20.0 kgf·m, 130.2 - 144.7 lb·ft)
