Kia EV6: Components and Components Location

Component

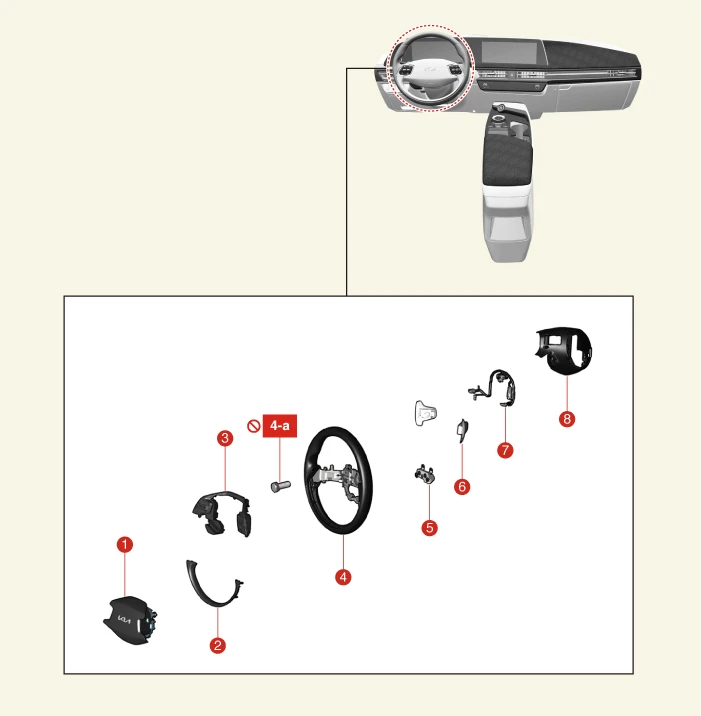

Kia EV6. Components and Components Location

1. Driver Air Bag (DAB) Module
2. Steering Wheel Inner Bezel
3. Steering Wheel Remote Control Switch Assembly
4. Steering Wheel Body Assembly
4-a. 39.3 - 49.0 N·m (4.0 - 5.0 kgf·m, 29.0 - 36.1 lb·ft)
5. Dynamic Damper
6. Paddle Shift Switch
7. Steering Wheel Extension Wire
8. Lower Cover
