Kia EV6 (CV) 2022–2025 Workshop Manual

Body (Interior and Exterior) / Hood / Components and Components Location /

Kia EV6: Components and Components Location

Component

Kia EV6. Components and Components Location

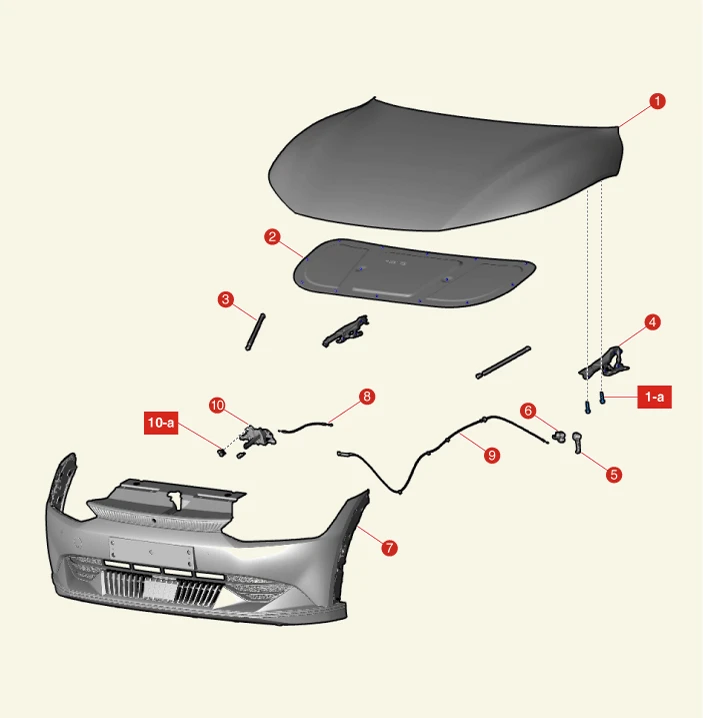

1. Hood Assembly
1-a. 18.6 - 24.5 N·m (1.9 - 2.5 kgf·m, 13.7 - 18.1 lb·ft)
2. Hood Insulator Pad
3. Hood Lifter
4. Hood Hinge
5. Hood Latch Release Handle
6. Hood Latch Release Handle Base
7. Front Bumper Assembly
8. Hood Latch Cable 1
9. Hood Latch Cable 2
10. Hood Latch Assembly
10-a. 6.9 - 10.8 N·m (0.7 - 1.1 kgf·m, 5.1 - 8.0 lb·ft, 60.8 - 95.5 lb·in)

Hood

...

PREV

Repair procedures

Adjustment 1.Loosening the mounting bolts of the hood hinge (A) 2.Adjust the hood by moving it up and down or from side to side and tighten the bolt. 3.Adjust the height of the hood by turning ...

NEXT
