Kia EV6: Front Door Frame Garnish and Molding

Removal

Front Door Frame Molding

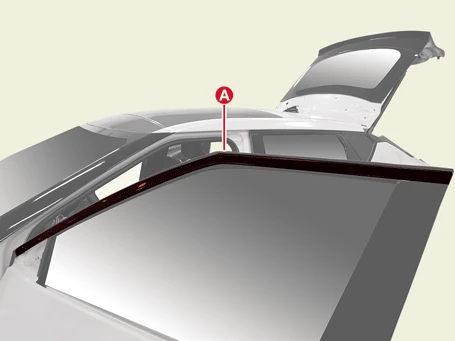

1.Remove the front door frame molding (A).

Kia EV6. Front Door Frame Garnish and Molding

Kia EV6. Front Door Frame Garnish and Molding

Kia EV6. Front Door Frame Garnish and Molding

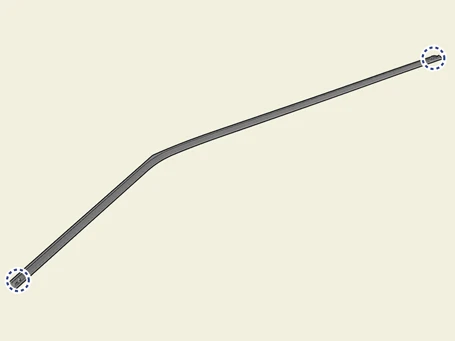

Clip position :

Kia EV6. Front Door Frame Garnish and Molding

Front Door Outside Weather Strip

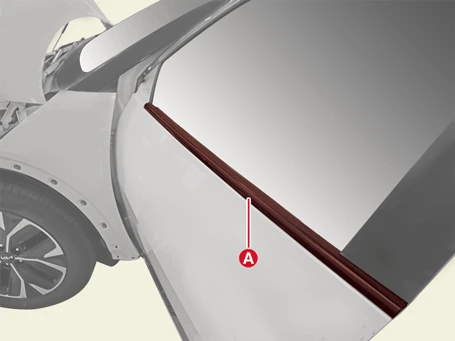

1.Remove the front door outside weather strip (A).

Kia EV6. Front Door Frame Garnish and Molding

Front Door Frame Garnish

1.Remove the front door frame garnish (A).

Kia EV6. Front Door Frame Garnish and Molding

Kia EV6. Front Door Frame Garnish and Molding

Kia EV6. Front Door Frame Garnish and Molding

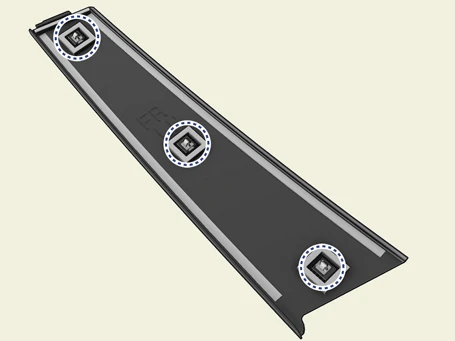

Clip position :

Kia EV6. Front Door Frame Garnish and Molding

Installation

1.Install in the reverse order of removal.
