Kia EV6: Fender Garnish

Removal

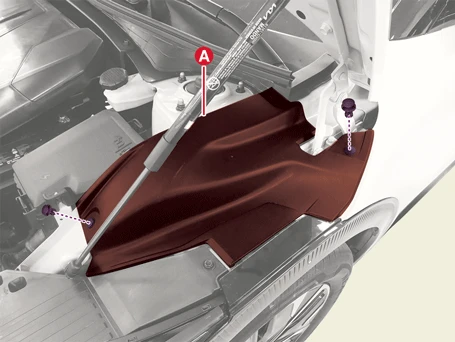

1.Remove the fender apron upper cover (A) after removing the fasteners.

Kia EV6. Fender Garnish

Kia EV6. Fender Garnish

Kia EV6. Fender Garnish

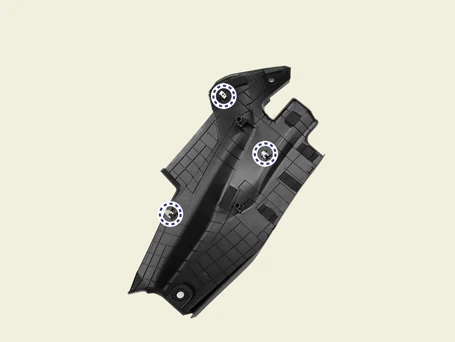

Clip position :

Kia EV6. Fender Garnish

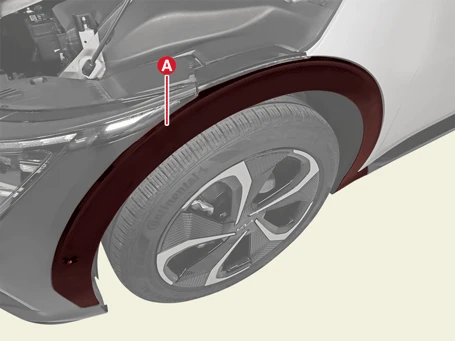

2.Remove the fender garnish (A).

Kia EV6. Fender Garnish

Kia EV6. Fender Garnish

Kia EV6. Fender Garnish

Clip position :

Kia EV6. Fender Garnish

Installation

1.Install in the reverse order of removal.
