Kia EV6 (CV) 2022–2025 Workshop Manual

Body (Interior and Exterior) / Wide Sunroof / Components and Components Location /

Kia EV6: Components and Components Location

Component

Kia EV6. Components and Components Location

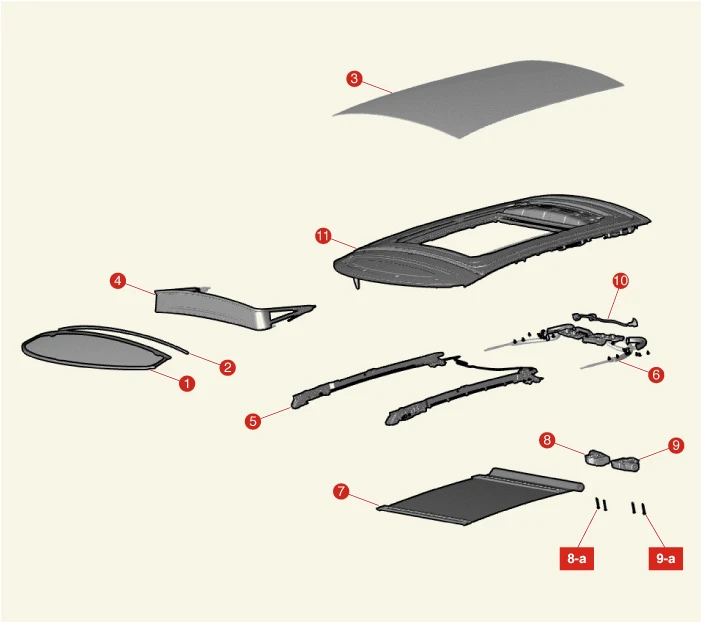

1. Front Glass
2. Front Glass Weatherstrip
3. Moving Glass
4. Sunroof Deflector
5. Sunroof Mechanism
6. Sunroof Drive Unit
7. Sunroof Roller Blind
8. Moving Glass Motor
8-a. 6.9 - 8.8 N·m (0.7 - 0.9 kgf·m, 5.1 - 6.5 lb·ft, 60.8 - 78.1 lb·in)
9. Roller Blind Motor
9-a. 6.9 - 8.8 N·m (0.7 - 0.9 kgf·m, 5.1 - 6.5 lb·ft, 60.8 - 78.1 lb·in)
10. Sunroof Cable
11. Sunroof Frame

Wide Sunroof

...
