Removal
1.Remove the wiper arm.(Refer to Body Electrical System - "Wiper Arm")

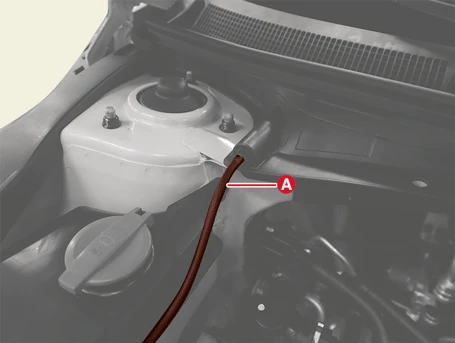

2.Separate the washer nozzle (A).

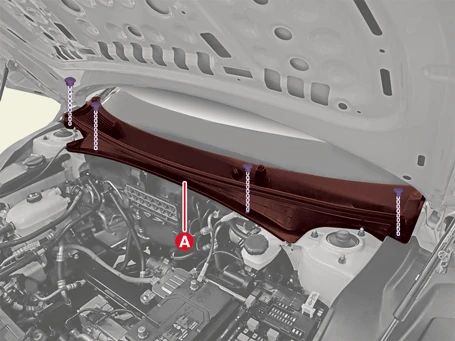

3.Remove the cowl top cover (A) after removing the fasteners.
Installation
1.Install in the reverse order of removal.
