Kia EV6: Components and Components Location

Component

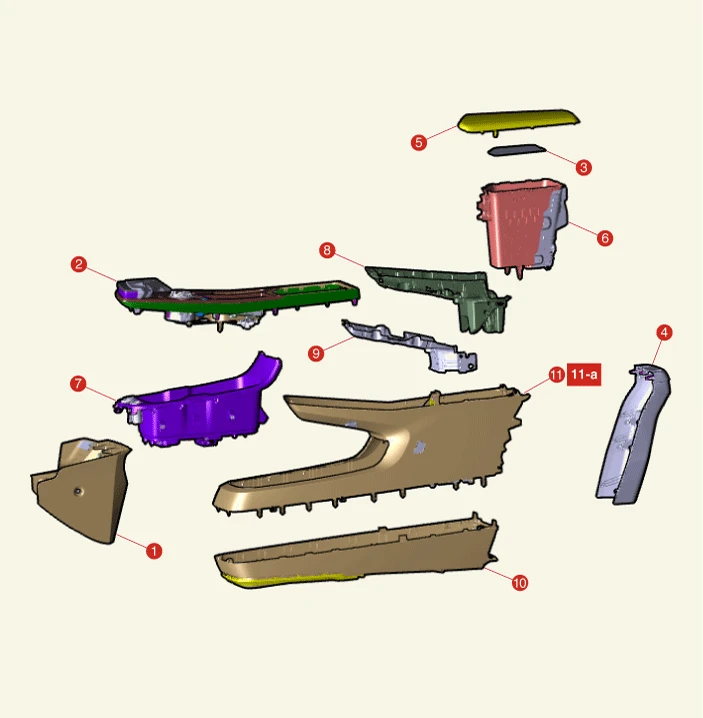

Kia EV6. Components and Components Location

1. Front Console Cover
2. Floor Console Upper Cover
3. Floor Console Storage Box Mat
4. Rear Console Cover
5. Rear Console Armrest
6. Floor Console Storage Box
7. Console Tray
8. Floor Console Upper Reinforcement
9. Floor Console Lower Reinforcement
10. Floor Console Lower Garnish
11. Floor Console Assembly
11-a. 6.9 - 9.8 N·m (0.7 - 1.0 kgf·m, 5.1 - 7.2 lb·ft, 60.8 - 86.8 lb·in)
