Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
Floor carpet
1.Remove the front seat assembly.(Refer to Front Seat - "Front Seat Assembly")
2.Remove the rear seat assembly.(Refer to Rear Seat - "Rear Seat Assembly")
3.Remove the center pillar lower trim.(Refer to Interior Trim - "Center Pillar Trim")
4.Remove the cowl side trim.(Refer to Interior Trim - "Cowl Side Trim")
5.Remove the floor console assembly. (Refer to Floor Console - "Floor Console Assembly")
6.Remove the luggage side trim.(Refer to Tailgate Trim - "Luggage Side Trim")

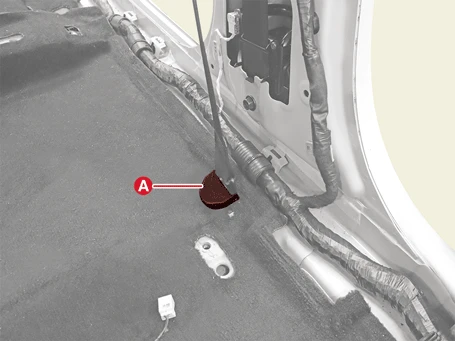

7.Remove the front seat belt lower anchor cover (A).

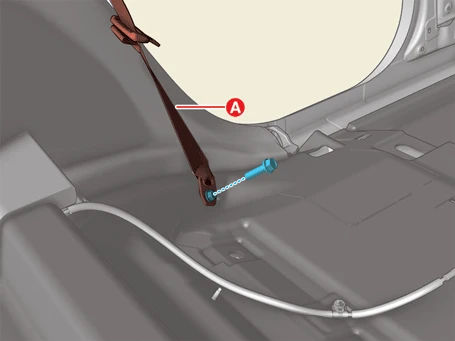

8.Remove the front seat belt lower anchor (A) after removing the bolt.

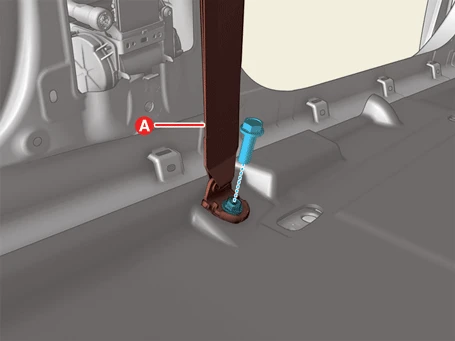

9.Remove the rear seat belt lower anchor (A) after removing the bolt.

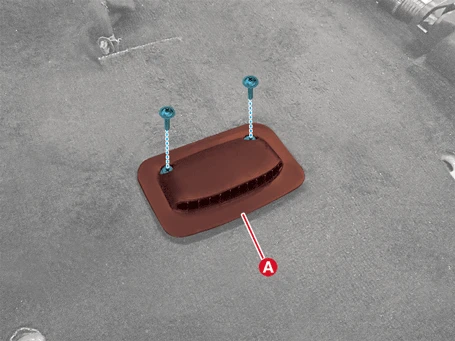

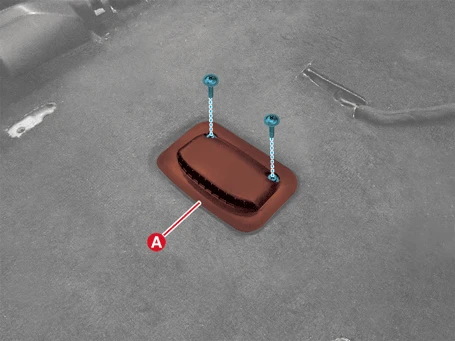

10.Remove the rear duct cover (A) after removing the screws.[LH]

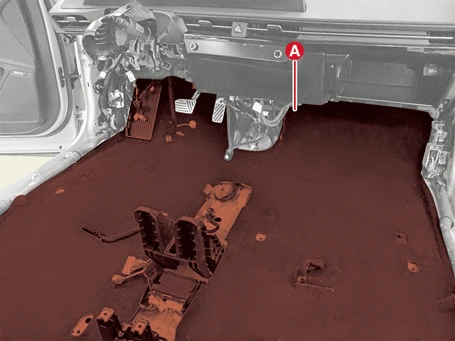

11.Remove the floor carpet (A).

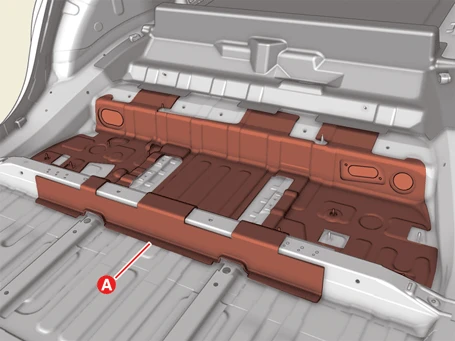

12.Remove the floor carpet pad (A).
Rear floor carpet
1.Remove the luggage side trim.(Refer to Tailgate Trim - "Luggage Side Trim")

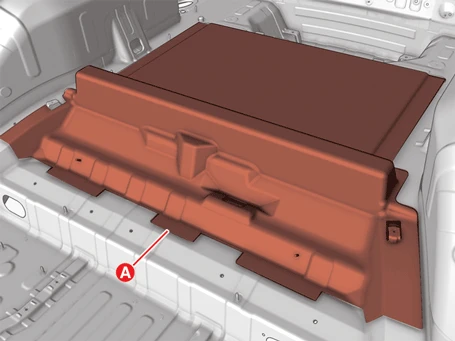

2.Remove the rear floor carpet (A).
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
