Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
[Standard]
1.Remove the front seat assembly.(Refer to Front Seat - "Front Seat Assembly")

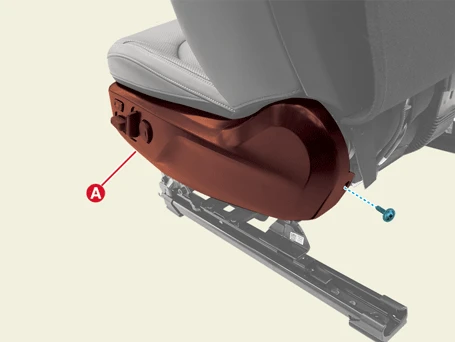

2.Remove the front seat shield outer cover (A) after removing the screw.

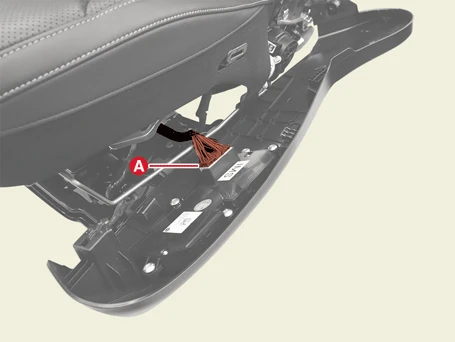

3.Disconnect the front seat power switch connector (A).
[Sports]
1.Remove the front seat assembly.(Refer to Front Seat - "Front Seat Assembly")

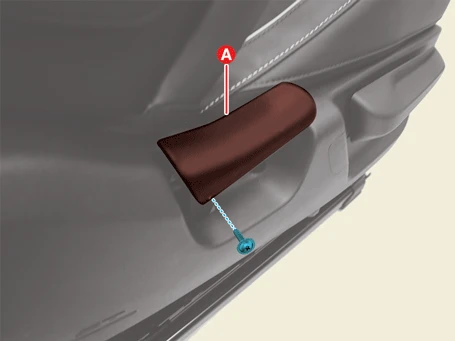

2.Remove the front seat height lever (A) after removing the screw.

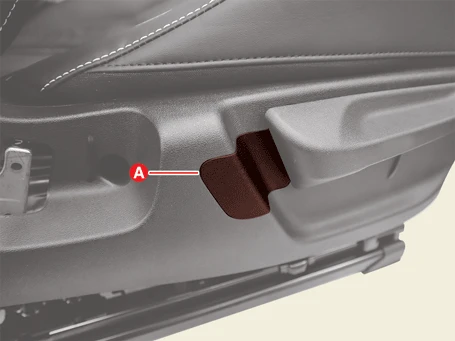

3.Remove the front seat recliner lever cover (A).

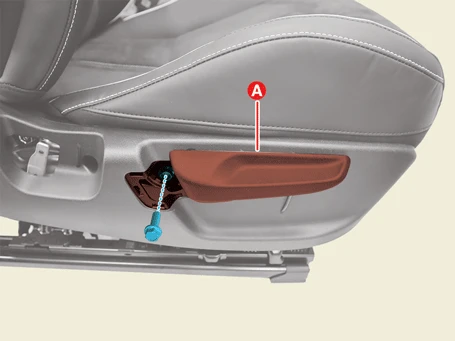

4.Remove the front seat recliner lever (A) after removing the bolt.

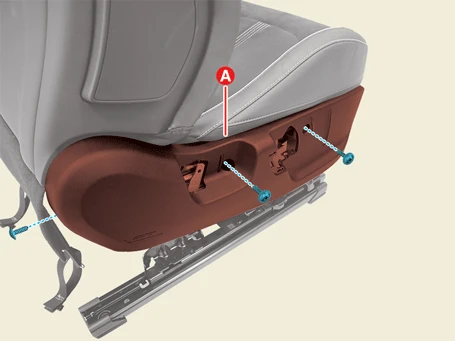

5.Remove the front seat shield outer cover (A) after removing the screws.
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
