Kia EV6 (CV) 2022–2025 Workshop Manual

Body (Interior and Exterior) / Rear Seat / Components and Components Location /

Kia EV6: Components and Components Location

Component

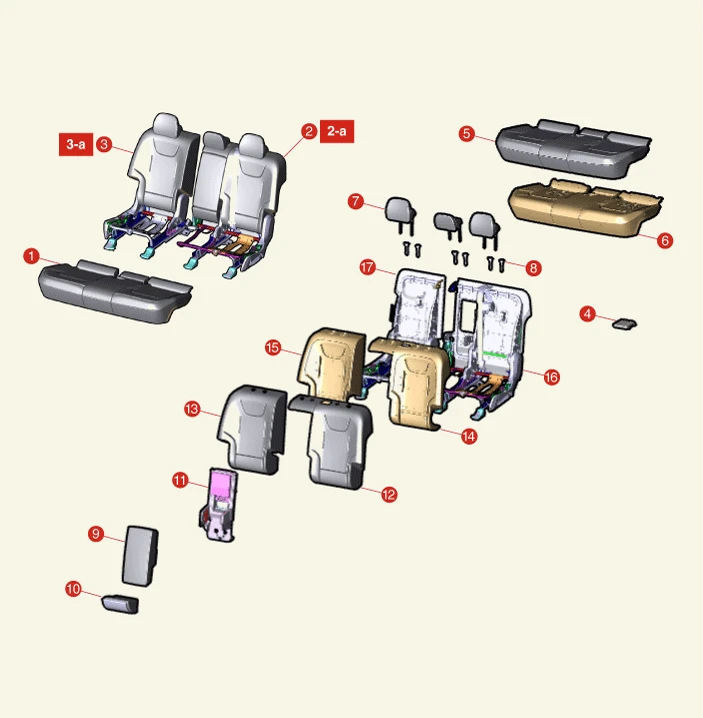

Kia EV6. Components and Components Location

1. Rear Seat Cushion Assembly
2. Rear Seat Back Assembly [LH]
2-a. 16.7 - 25.4 N·m (1.7 - 2.6 kgf·m, 12.3 - 18.8 lb·ft)
3. Rear Seat Back Assembly [RH]
3-a. 16.7 - 25.4 N·m (1.7 - 2.6 kgf·m, 12.3 - 18.8 lb·ft)
4. Rear Heater ECU
5. Rear Seat Cushion Cover
6. Rear Seat Cushion Pad
7. Head Rest
8. Head Rest Guide
9. Rear Seat Back Armrest
10. Rear Seat Back Lower Armrest
11. Rear Seat Armrest Board
12. Rear Seat Back Cover [LH]
13. Rear Seat Back Cover [RH]
14. Rear Seat Back Cushion [LH]
15. Rear Seat Back Cushion [RH]
16. Rear Seat Back Frame [LH]
17. Rear Seat Back Frame [RH]

Rear Seat

...
