Description

Augmented Reality Head Up Display (AR HUD) System displays various information on the windshield glass which minimizes the driver’s eye movement to enhance safety and convenience.Information provided by AR HUD

1.Drive information : Vehicle speed, Drive mode

2.Turn by Turn navigation information, road signs.

3.ADAS : SCC, LKA, BCW, BCA

Operation

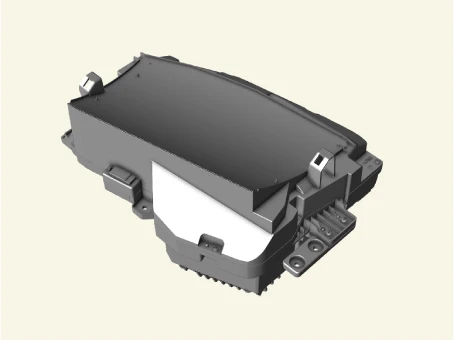

1.AR HUD : Output various vehicle system information on windshield glass via CAN.

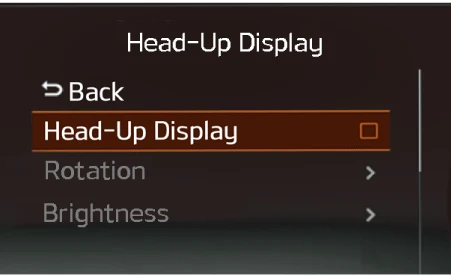

2.AVNT : There is no ON/OFF switch for AR HUD. Enable/disable via USM (User Setting Mode) in AVNT.

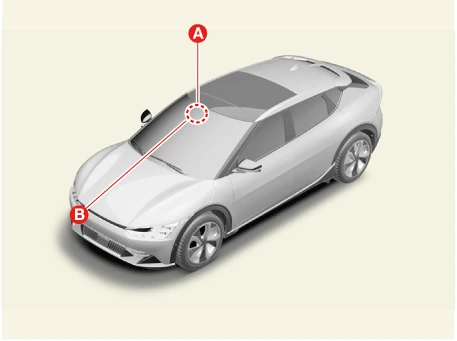

3.Illumination Sensor : It is equipped with bidirectional (A : vertical, B : horizontal) sensor. AR HUD brightness is controlled depending on horizontal measurement (ambient brightness).

– Built-in bidirectional illumination sensor



If illumination sensor measurement could not be detected, AR HUD will not be displayed. Check for normal operation of illumination sensor before inspecting AR HUD.

4.Windshield glass : Windshield glass exclusive for AR HUD is built in with double image removal film.



• Use of window tinting film on windshield glass may decrease image quality.

• Image may be distorted or seem dark if driver wears polarized sunglasses.



• When replacing front windshield glass, always replace with exclusive windshield glass for Head Up Display. Otherwise, the Augmented Reality Head Up Display images may overlap.
