Kia EV6: Components and Components Location

Component

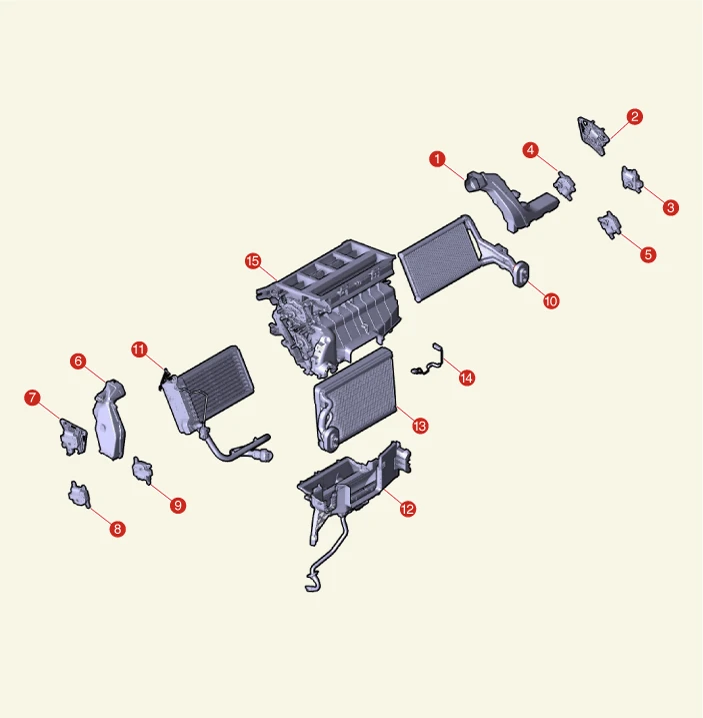

Kia EV6. Components and Components Location

1. Driver Side Shower Duct
2. Driver Side Mode Control Actuator
3. Driver Side Temperature Control Actuator
4. Rear Heating Temperature Control actuator
5. Rear Cooling Temperature Control actuator
6. Passenger Side Shower Duct
7. Passenger Side Mode Control Actuator
8. Passenger Side Temperature Control Actuator
9. Auto Defogging Actuator
10. Inner Condenser
11. PTC Heater
12. Heater Unit Lower Cover
13. Evaporator Core
14. Evaporator Temperature Sensor

Heater

...

PREV

Heater Unit

Removal • When working on high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high volt ...
