Kia EV6 (CV) 2022–2025 Workshop Manual

Battery Control System (Long Range) (EV Battery System) / High Voltage Battery System / Components and Components Location /

Kia EV6: Components and Components Location

Component

Kia EV6. Components and Components Location

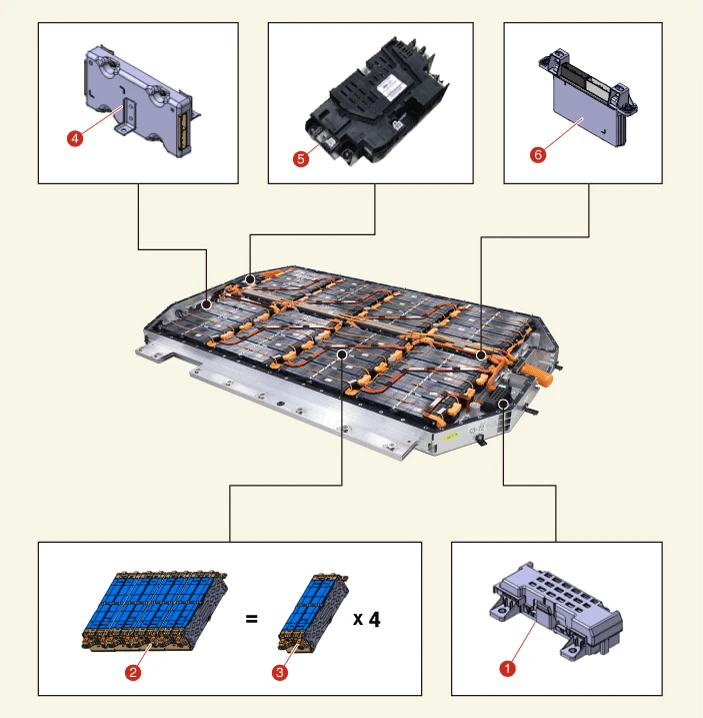

1. Main Fuse
2. Sub Battery Pack Assembly (Sub-BPA)
3. Battery Module Assembly (BMA)
4. Battery Management Unit (BMU)
5. Power Relay Assembly (PRA)
6. Cell Monitoring Unit (CMU)

Specification

Specification Item Specification Capacity (kWh) 77.4 Rated voltage (V) 697 Charge / Discharge output (kW) Maximum 253 ...

PREV

Description and Operation

Description System Component • The high voltage battery system saves and supplies electric energy for driving the vehicle. • It consists of 32 battery modules, the Battery Management Unit (B ...
