Battery Control System (Long Range) (EV Battery System) / Electric Power Conversion System / Description and Operation /

Kia EV6: Description and Operation

Description

Electric Power Conversion System Description

• The electric power conversion is a system that converts power (AC/DC ↔ DC/AC) according to its use.

• It converts more than one of the voltage, current frequency or phrase without loss of power.

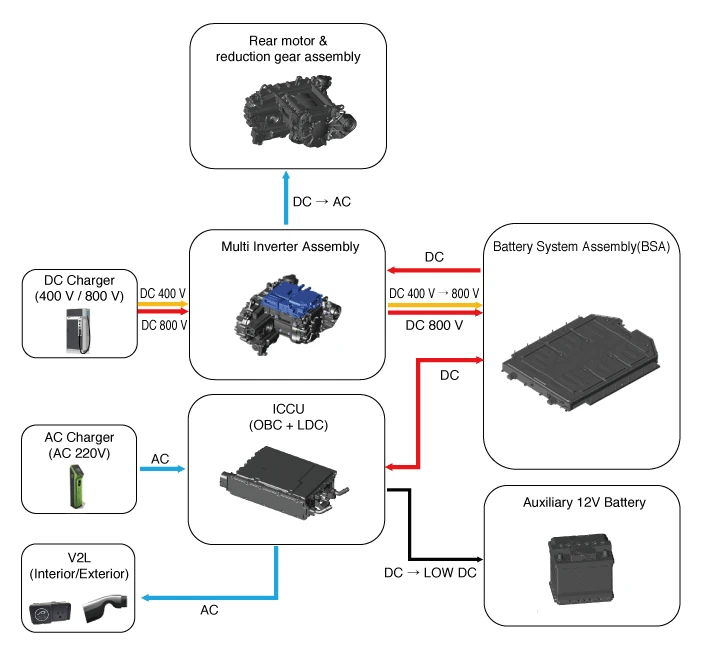

Electric Power Conversion System Configuration

Kia EV6. Description and Operation

Components and Components Location

Component 1. Integrated Charging Control Unit (ICCU) 2. Multi Inverter Assembly 3. Inverter Assembly (For 4WD) ...

PREV

Multi Inverter Assembly

Specification Item Specification Input voltage (V) 452.5 - 778.3 Operating voltage (V) 9 - 16 Continuous current (A) 1 ...

NEXT
