Service Data
High Voltage Battery System
|
Item |
Specification |
|
Capacity (kWh) |
58.0 |
|
Rated voltage (V) |
523 |
|
Charge / Discharge output (kW) |
Maximum 195 |
|
Cell capacity (Ah) |
111.2 |
|
Composition |
144 Cells (24 Modules) |
High Voltage Battery Control System
Battery Management Unit (BMU)
|
Item |
Specification |
|
Operating voltage (V) |
9 - 16 |
|
Operating temperature [°C (°F)] |
-35 to 75 (-31 to 167) |
|
Insulated resistance (MΩ) |
10 (at 2 kV) |
Cell Monitoring Unit (CMU)
|
Item |
Specification |
|
Operating voltage (V) |
9 - 60 (12 cells) |
|
Operating temperature [°C (°F)] |
-35 to 75 (-31 to 167) |
|
Insulated resistance (MΩ) |
10 (at 2 kV) |
Power Relay Assembly (PRA)
Main Relay
|
Item |
Specification |
|
Rated voltage (V) |
12 |
|
Operating voltage (V) |
0.5 - 9 |
|
Coil resistance (Ω) |
21.6 - 26.4 [20°C (68°F)] |
Pre-charge Relay
|
Item |
Specification |
|
Type |
Mechanical relay |
|
Rated voltage (V) |
610 |
|
Rated current (A) |
12 |
Battery Current Sensor
|
High Current (A) |
Output Voltage (V) |
|
-750 (Charge) |
0.5 |
|
0 |
2.5 |
|
750 (Discharge) |
4.5 |
|
Low Current (A) |
Output Voltage (V) |
|
-75 |
0.5 |
|
0 |
2.5 |
|
75 |
4.5 |
Main Fuse
|
Item |
Specification |
|
Resistance (Ω) |
1.0 or below [20°C (68°F)] |
Voltage & Temperature Sensing Wiring
|
Temperature |
Resistance Value (kΩ) |
Tolerance (%) |
|
°C |
°F |
|
-40 |
-40 |
214.8 |
-0.7 to 0.7 |
|
-30 |
-22 |
122 |
-0.7 to 0.7 |
|
-20 |
-4 |
72.04 |
-0.6 to 0.6 |
|
-10 |
14 |
44.09 |
-0.6 to 0.6 |
|
0 |
32 |
27.86 |
-0.5 to 0.5 |
|
10 |
50 |
18.13 |
-0.4 to 0.4 |
|
20 |
68 |
12.12 |
-0.4 to 0.4 |
|
30 |
86 |
8.3 |
-0.4 to 0.4 |
|
40 |
104 |
5.81 |
-0.5 to 0.5 |
|
50 |
122 |
4.1 |
-0.6 to 0.6 |
|
60 |
140 |
3.01 |
-0.8 to 0.8 |
|
70 |
158 |
2.23 |
-0.9 to 0.9 |
High Voltage Charging System
Integrated Charging Control Unit (ICCU)
|
Item |
Specification |
|
Function |
ON-Board Charger (OBC) + Low Voltage DC/DC Converter (LDC) |
|
OBC system specification |
Maximum capacity (kW) |
10.9 |
|
Input voltage (V) |
AC 70 - 285 |
|
Output voltage (V) |
DC 360 - 826 |
|
Input Current (A) |
Maximum 48 |
|
LDC system specification |
Maximum capacity (kW) |
1.8 |
|
Input voltage (V) |
DC 360 - 826 |
|
Output voltage (V) |
12.8 - 15.1 |
|
Ampere (A) |
130 |
|
Cooling |
Cooling type |
Water-cooling |
|
Operating temperature [°C (°F)] |
-40 to 85 (-40 to 185) |
Vehicle Charge Management System (VCMS)
|
Item |
Specification |
|
Rated voltage (V) |
DC 11 - 13 |
|
Operating voltage (V) |
DC 9 - 16 |
|
Operating temperature [°C (°F)] |
-30 to 75 (-22 to 167) |
|
Parasitic current (mA) |
Maximum 1.0 (Power OFF Mode) |
In-Cable Control Box (ICCB)
|
Item |
Specification |
|
Rated voltage (V) |
120 - 230 |
|
Rated current (A) |
6, 8, 10, 12 (Variable Settings) |
Electric Power Conversion System
Multi Inverter Assembly
|
Item |
Specification |
|
Input voltage (V) |
452.5 - 778.3 |
|
Operating voltage (V) |
9 - 16 |
|
Continuous current (A) |
180 (@20 min.) |
|
Ampere (A) |
Maximum 245 (@15 sec.) |
Inverter Assembly (4WD)
|
Item |
Specification |
|
Input voltage (V) |
452.5 - 778.3 |
|
Operating voltage (V) |
9 - 16 |
|
Continuous current (A) |
75 (@20 min.) |
|
Ampere (A) |
Maximum 190 (@15 sec.) |
Auxiliary 12 V Battery
|
Item |
Specification |
|
Type |
CMF60L-DIN |
|
Capacity [20HR/5HR] (AH) |
60 / 48 |
|
Cold cranking amperage (A) |
550 (SAE / EN) |
|
Reserve capacity (Min) |
92 |
|
Specific gravity |
1.27 - 1.29 [25°C (77°F)] |
|
Voltage (V) |
12 |

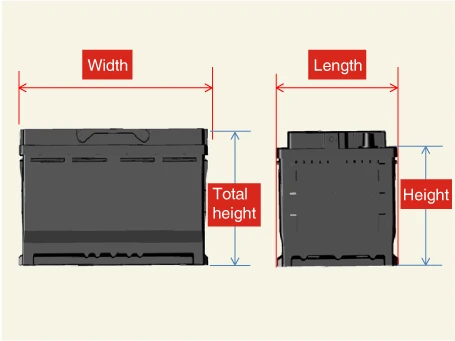

Battery Size
|
Capacity (20HR/5HR) |
Width |
Length |
Height |
Total height |
|
mm (in.) |
|
60 / 48 |
240 - 242 (9.45 - 9.53) |
173 - 175 (6.81 - 6.89) |
164 - 168 (6.46 - 6.61) |
188 - 190 (7.40 - 7.48) |
Battery Sensor
|
Item |
Specification |
|
Rated voltage (V) |
12 - 14 |
|
Operating voltage (V) |
6 - 18 |
|
Operating temperature [°C (°F)] |
-40 to 105 (-40 to 221) |
|
Parasitic current (uA) |
Maximum 300 |
Tightening Torque
High Voltage Battery System
Battery System Assembly (BSA)
Item
N·m
kgf·m
lb·ft
lb·in
Battery System Assembly (BSA) throu ...
