Kia EV6 (CV) 2022–2025 Workshop Manual

Advanced Driver Assistance System (ADAS) / Advanced Driver Assistance System Parking / Components and Components Location /

Kia EV6: Components and Components Location

Component

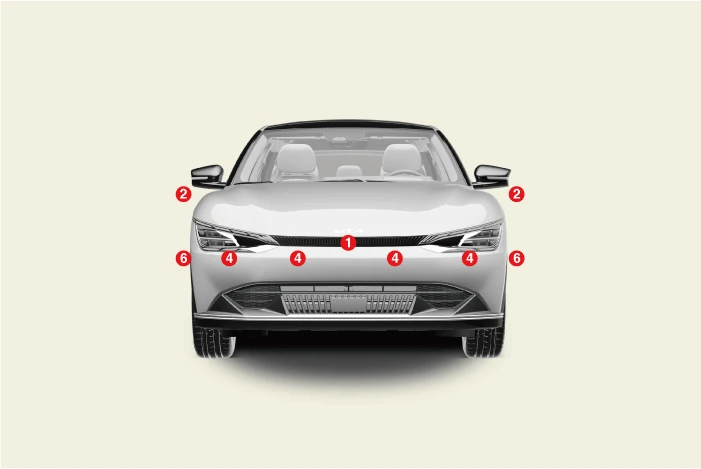

[Front]

Kia EV6. Components and Components Location

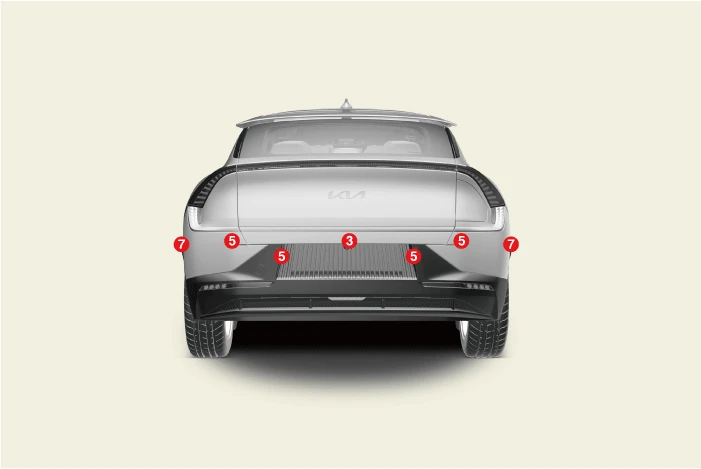

[Rear]

Kia EV6. Components and Components Location

1. Front Camera (SVM)
2. Side Camera (SVM)
3. Rear Camera (SVM)
4. Front Ultrasonic Sensor
5. Rear Ultrasonic Sensor
6. Front Corner Ultrasonic Sensor(RSPA Type)
7. Rear Corner Ultrasonic Sensor(RSPA Type)
