Kia EV6: Components and Components Location

Components

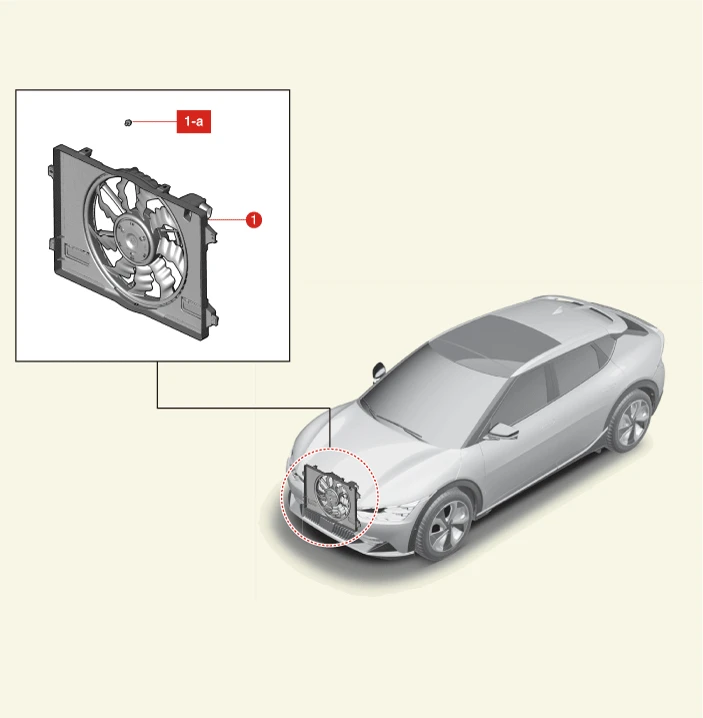

Kia EV6. Components and Components Location

1. Cooling Fan Assembly
1-a. 4.9 - 7.8 N·m (0.5 - 0.8 kgf·m, 3.6 - 5.8 lb·ft, 43.4 - 69.4 lb·in)

Cooling Fan

...
