Kia EV6: Inspection

Inspection

Fan motor

1.After connecting the KDS, force the cooling fan motor.

Kia EV6. Inspection

There are 2 modes of forced fan motor drive.

[Fan Motor Control-Low Speed]

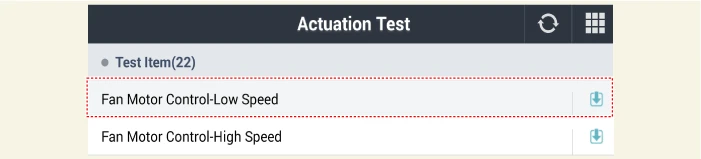

(1)Perform the "Fan Motor Control-Low Speed" on the KDS menu.

Kia EV6. Inspection

(2)Click the "start" to perform the fan motor drive.

Kia EV6. Inspection

(3)Visually check the operation of the cooling fan.

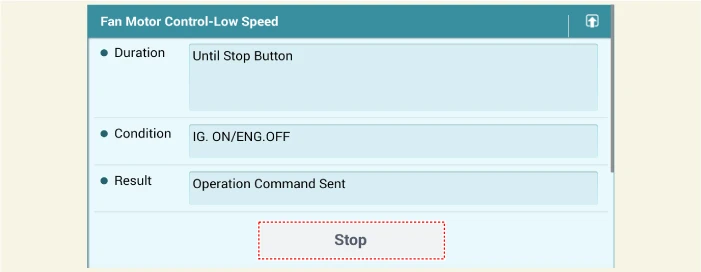

(4)Click the "stop" to stop the fan motor drive.

Kia EV6. Inspection

[Fan Motor Control-High Speed]

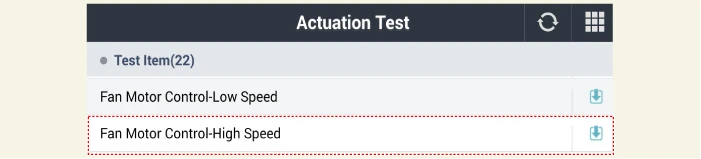

(1)Perform the "Fan Motor Control-High Speed" on the KDS menu.

Kia EV6. Inspection

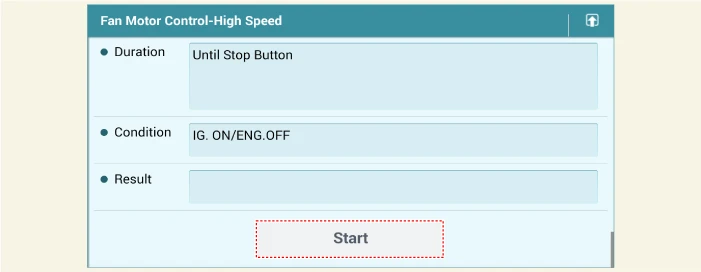

(2)Click the "start" to perform the fan motor drive.

Kia EV6. Inspection

(3)Visually check the operation of the cooling fan.

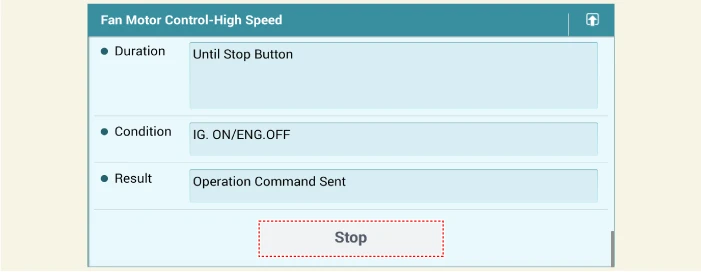

(4)Click the "stop" to stop the fan motor drive.

Kia EV6. Inspection
