Component Location
| P/NO. (P/Name) | Location | Number | |
| KDS | Workshop Manual | ||
|
375W5-CV000 (WATER PUMP ASSY-ELECTRIC NO.1) |
In front of the reservoir | EWP#2 | EWP1 |
|
375V5-GI000,GI200 (WATER PUMP ASSY-ELECTRIC NO.2) |
The underside of the vehicle (Behind the motor) |
EWP#1 | EWP2 |

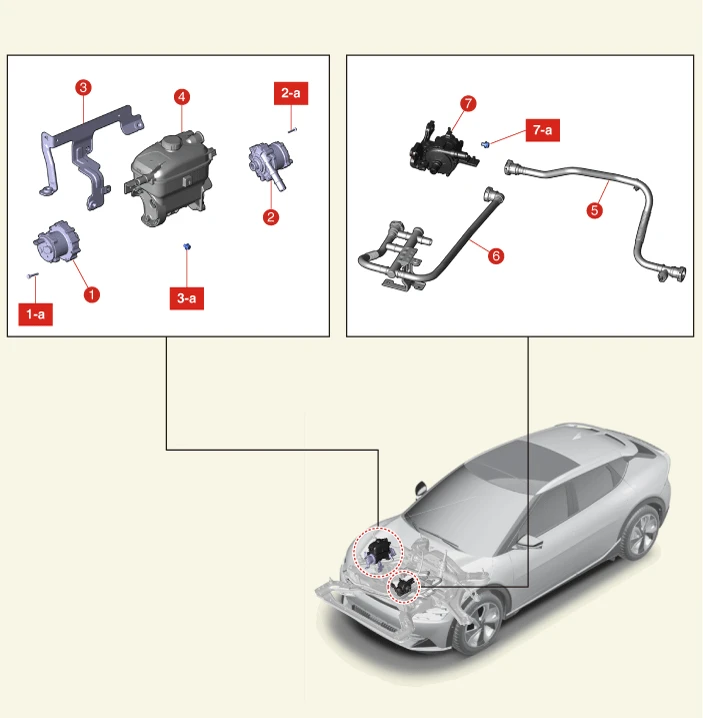

[2WD]
1. Battery Electronic Water Pump (EWP) 1
1-a. 2.0 - 2.5 N·m (0.20 - 0.25 kgf·m, 1.4 - 1.8 lb·ft, 17.4 - 21.7 lb·in)
2. Motor Electric Water Pump (EWP)
2-a. 2.0 - 2.5 N·m (0.20 - 0.25 kgf·m, 1.4 - 1.8 lb·ft, 17.4 - 21.7 lb·in)
3. Reservoir Tank Bracket
3-a. 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
4. Reservoir Tank
5. Electronic Water Pump Hose
6. Coolant Distribution Pipe
7. Battery Electronic Water Pump (EWP) 2
7-a. 6.9 - 9.8 N·m (0.7 - 1 kgf·m, 5.1 - 7.2 lb·ft)

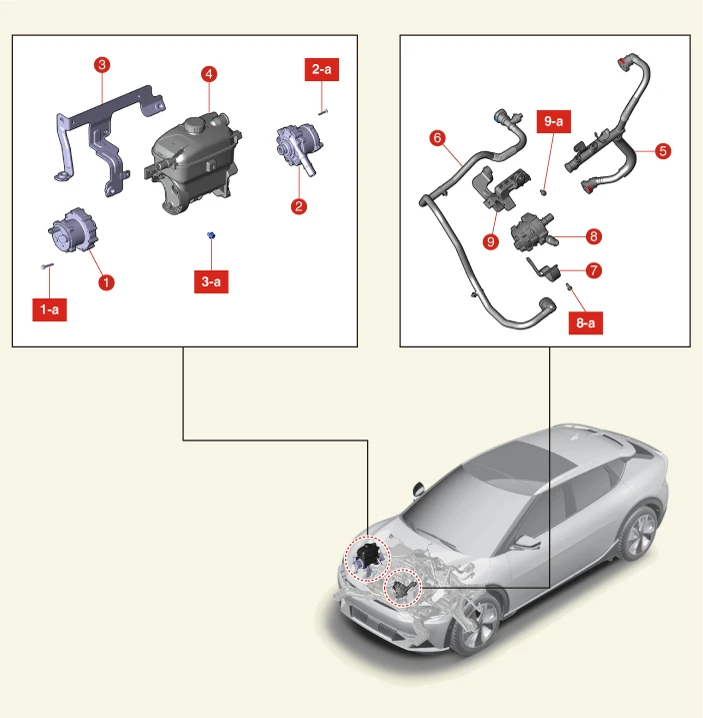

[4WD]
1. Battery Electronic Water Pump (EWP) 1
1-a. 2.0 - 2.5 N·m (0.20 - 0.25 kgf·m, 1.4 - 1.8 lb·ft, 17.4 - 21.7 lb·in)
2. Motor Electric Water Pump (EWP)
2-a. 2.0 - 2.5 N·m (0.20 - 0.25 kgf·m, 1.4 - 1.8 lb·ft, 17.4 - 21.7 lb·in)
3. Reservoir Tank Bracket
3-a. 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
4. Reservoir Tank
5. Coolant Distribution Pipe
6. Electronic Water Pump Hose
7. Battery Electronic Water Pump (EWP) 2 Bracket 1
8. Battery Electronic Water Pump (EWP) 2
8-a. 6.9 - 9.8 N·m (0.7 - 1.0 kgf·m, 5.1 - 7.2 lb·ft)
9. Battery Electronic Water Pump (EWP) 2 Bracket 2
