Kia EV6 (CV) 2022–2025 Workshop Manual

Cooling System / Coolant Distribution Pipe / Components and Components Location /

Kia EV6: Components and Components Location

Component Location

2WD

Kia EV6. Components and Components Location

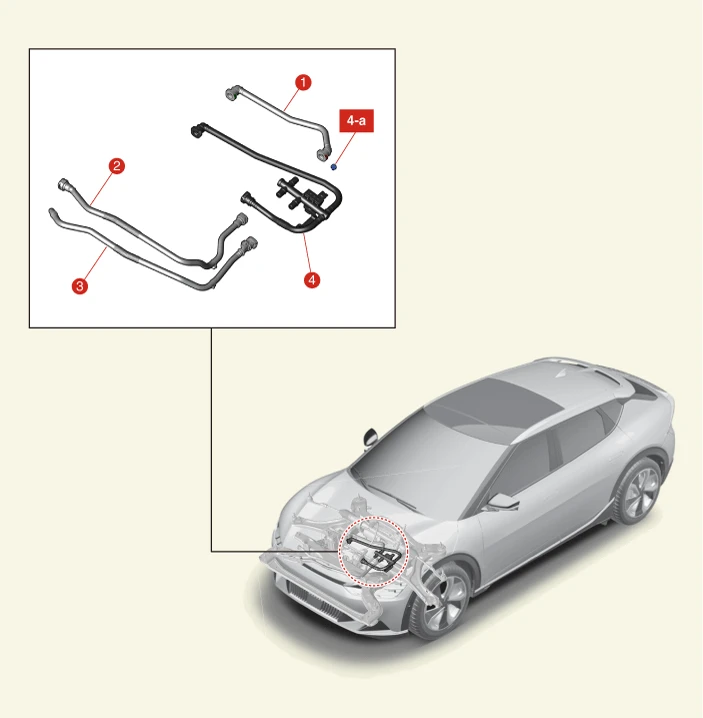

1. Coolant Distribution Pipe Hose
2. Coolant Distribution Pipe Hose
3. Coolant Distribution Pipe Hose
4. Coolant Distribution Pipe
4-a. 19.6 - 23.5 N·m (2.0 - 2.4 kgf·m, 14.5 - 17.4 lb·ft)

4WD

Kia EV6. Components and Components Location

1. High Voltage Battery Coolant Hose
2. 3 Way Outlet Hose
3. Distribution Pipe Cooling Hose
4. Coolant Distribution Pipe
4-a. 19.6 - 23.5 N·m (2.0 - 2.4 kgf·m, 14.5 - 17.4 lb·ft)

Coolant Distribution Pipe

...

PREV

Removal and Installation - 2WD

Removal • When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of ...

NEXT
