Kia EV6 (CV) 2022–2025 Workshop Manual

Cooling System / Coolant Temperature Sensor / Removal and Installation - 2WD /

Kia EV6: Removal and Installation - 2WD

Removal

Coolant Inlet Temperature Sensor

1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery")

2.Remove the front trunk.(Refer to Body - "Front Trunk")

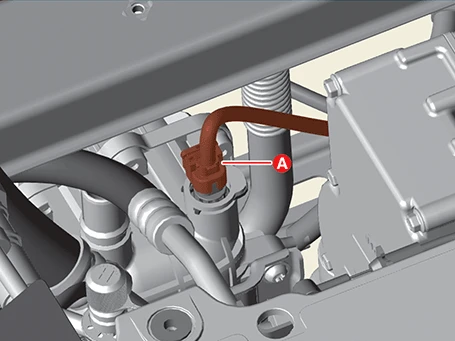

3.Disconnect the coolant inlet temperature sensor connector (A).

Kia EV6. Removal and Installation - 2WD

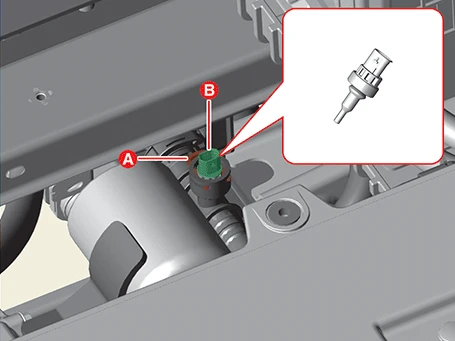

4.Remove the coolant temperature sensor.

(1)Remove the coolant temperature sensor pin (A).

(2)Remove the coolant inlet temperature sensor (B).

Kia EV6. Removal and Installation - 2WD

Battery Heater Temperature Sensor

1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery")

2.Remove the front trunk.(Refer to Body - "Front Trunk")

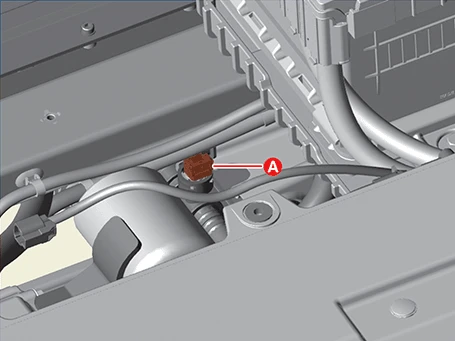

3.Disconnect the battery heater temperature sensor connector (A).

Kia EV6. Removal and Installation - 2WD

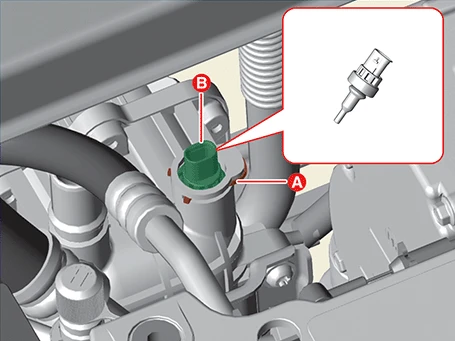

4.Remove the battery heater coolant temperature sensor.

(1)Remove the battery heater coolant temperature sensor pin (A).

(2)Remove the battery heater coolant temperatue sensor (B).

Kia EV6. Removal and Installation - 2WD

Battery Coolant Temperature Sensor

1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery")

2.Remove the front rear under cover.(Refer to Motor and Reduction Gear System - "Front Under Cover")

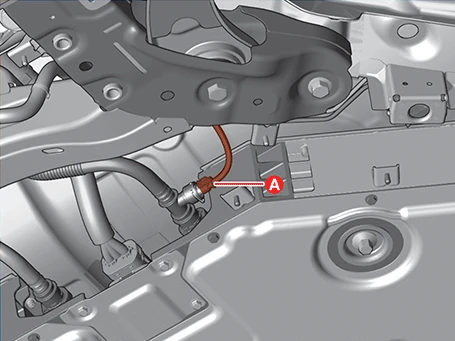

3.Disconnect the battery coolant temperature sensor connector (A).

Kia EV6. Removal and Installation - 2WD

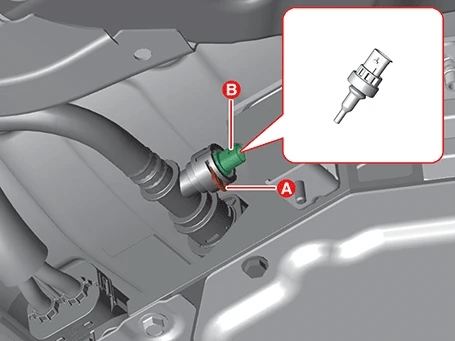

4.Remove the battery coolant temperature sensor.

(1)Remove the battery coolant temperature sensor pin (A).

(2)Remove the battery coolant temperature sensor (B).

Kia EV6. Removal and Installation - 2WD

Installation

Coolant Inlet Temperature Sensor

1.Install in the reverse order of removal.

Battery Heater Temperature Sensor

1.Install in the reverse order of removal.

Battery Coolant Temperature Sensor

1.Install in the reverse order of removal.

Specification

Specification Item Specification Operating condition (°C [°F]) -40 to 140 (-40 to 221) Coolant Temperature Table Temperature [°C (°F ...

Removal and Installation - 4WD

Removal Coolant Inlet Temperature Sensor 1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery" ...
