Kia EV6: Rear Under Cover

Removal

Center Floor Rear Under Cover

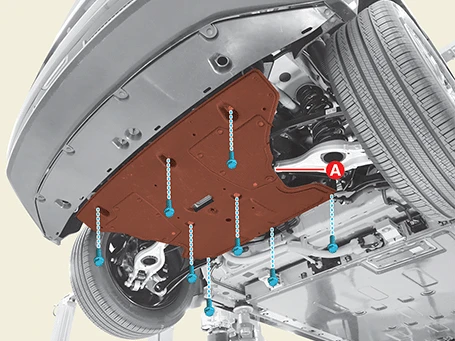

1.Remove the center floor rear under cover (A) after removing the mounting nuts.

Tightening torque :7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

[Standard]

Kia EV6. Rear Under Cover

[Long Range]

Kia EV6. Rear Under Cover

Rear Cross Member under Cover

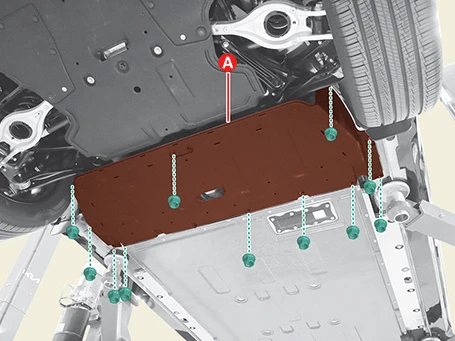

1.Remove the rear cross member under cover (A) after removing the mounting bolts.

Tightening torque :7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

Kia EV6. Rear Under Cover

Installation

Center Floor Rear Under Cover

1.Install in the reverse order of removal.

Rear Cross Member under Cover

1.Install in the reverse order of removal.
