Kia EV6: SBW(Shift By Wire) Control Unit

Component

Kia EV6. SBW(Shift By Wire) Control Unit

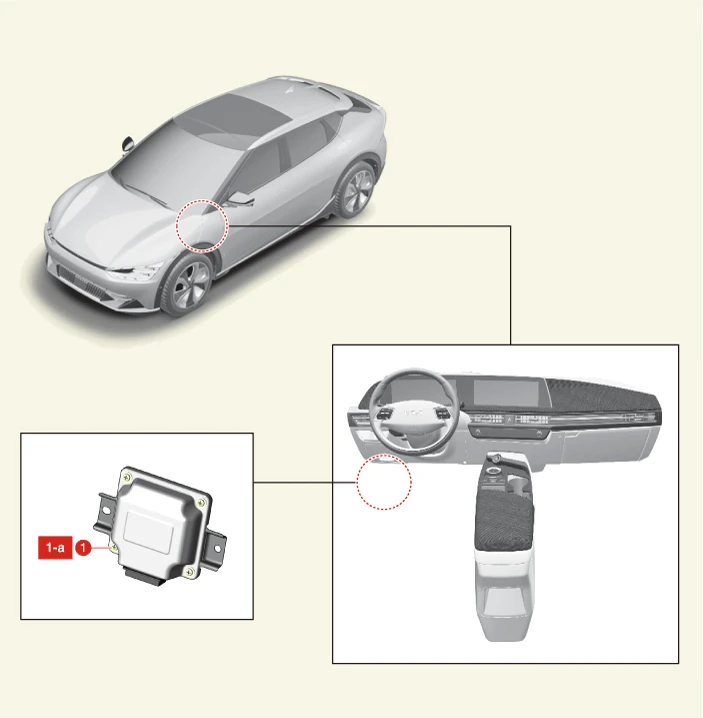

1. SBW Control Unit
1-a. 9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)


Removal

1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")

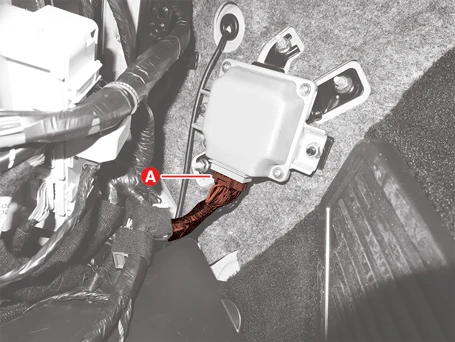

2.Disconnect the SBW control unit connector (A).

Kia EV6. SBW(Shift By Wire) Control Unit

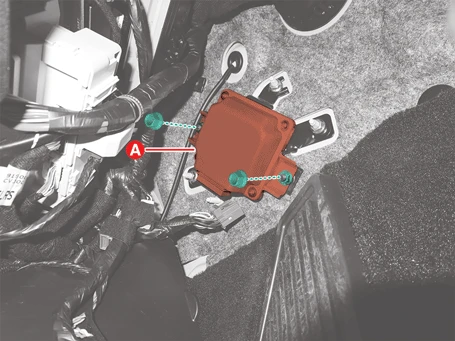

3.Remove the SBW control unit (A) after removing the nuts.

Tightening torque :9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

Kia EV6. SBW(Shift By Wire) Control Unit

Installation

1.Install in the reverse order of removal.
