Disassembly

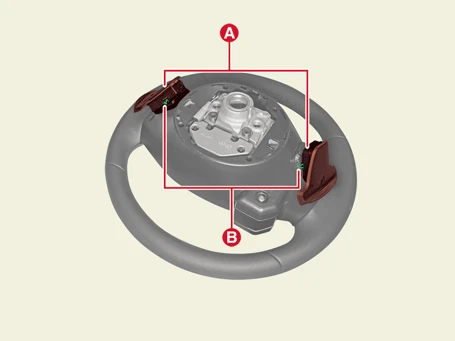

1.Remove the paddle shift switch mounting screws (A).

2.Disconnect the paddle shift connectors (B), and then remove the paddle shift switches (A).

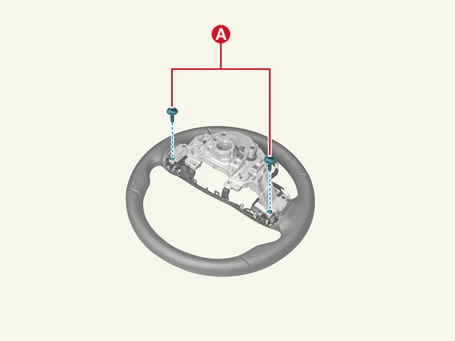

3.Remove the steering wheel lower cover screws (A).

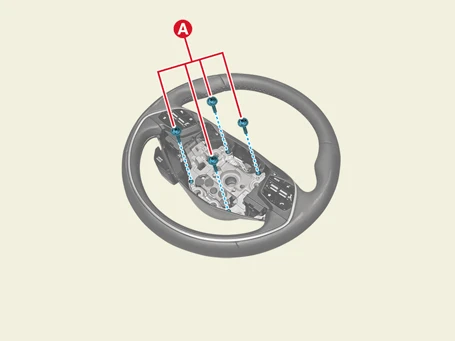

4.Remove the screws, and then separate the steering wheel lower cover (A).

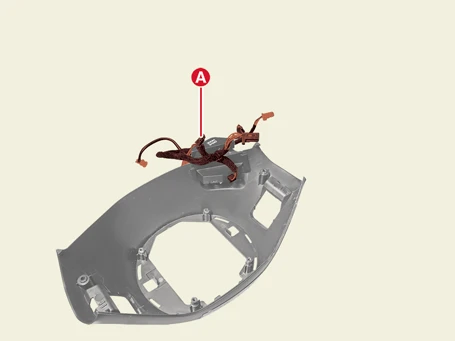

5.Disconnect the remote control switch connectors (A).

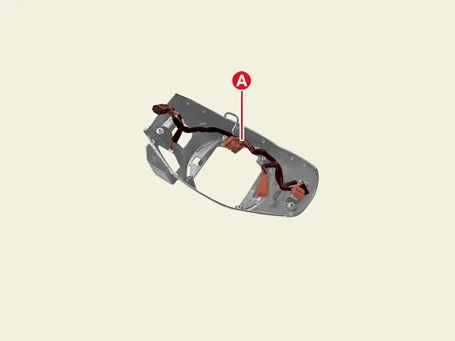

6.Remove the steering wheel extension wire (A).

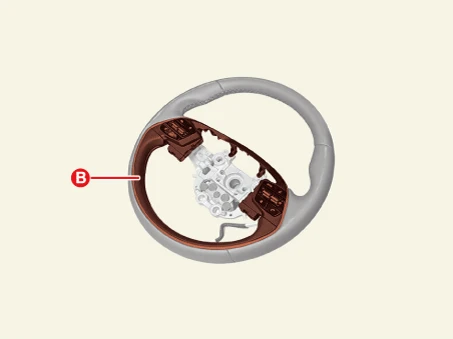

7.Remove the steering wheel bezel (B) after removing the mounting screws (A).

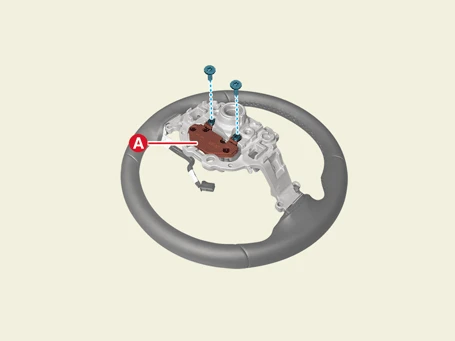

8.Remove the steering wheel dynamic damper (A) after removing the screws.

Reassembly

1.Reassemble in the reverse order of disassembly.

• When assembling the steering wheel, be careful not to damage the parts by tightening with excessive torque.

• Disconnection or short circuit may occur if the main wiring is not held in place when mounting the steering wheel lower cover.
