Kia EV6: Front Under Cover

Removal

Front Under Cover

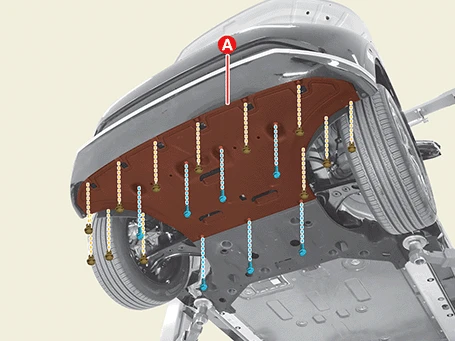

1.Remove the front under cover (A) after removing the fasteners and bolts.

Tightening torque :7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

Kia EV6. Front Under Cover

Front Rear Under Cover

Kia EV6. Front Under Cover

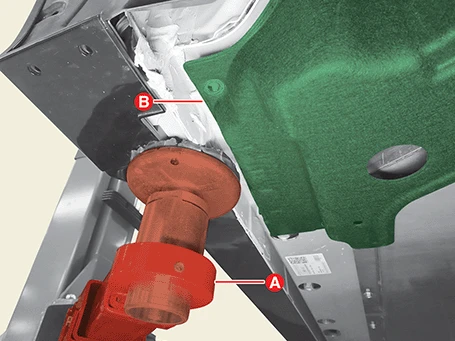

When installing the lift jack, verify that the lift jack (A) and the front rear under cover (B) interfere.

Kia EV6. Front Under Cover

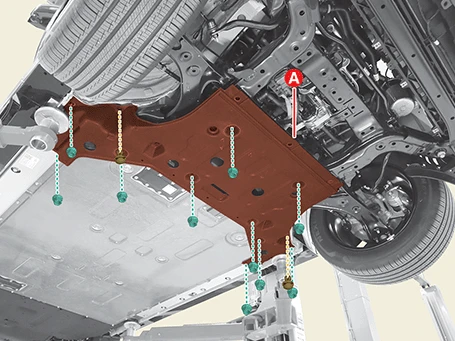

1.Remove the front rear under cover (A) after removing fasteners and nuts.

Tightening torque :7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

Kia EV6. Front Under Cover

Installation

Front Under Cover

1.Install in the reverse order of removal.

Front Rear Under Cover

1.Install in the reverse order of removal.
