Kia EV6: Charge Door Assembly

Removal

1.Remove the right outside rear combination lamp.(Refer to Body Electrical System - "Rear Combination Lamp")

2.Remove the flange cover (A).

Kia EV6. Charge Door Assembly

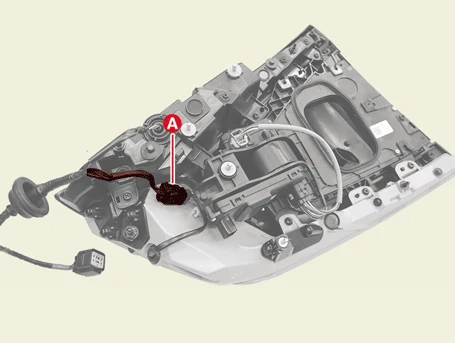

3.Disconnect the charge door control unit connector (A).

Kia EV6. Charge Door Assembly

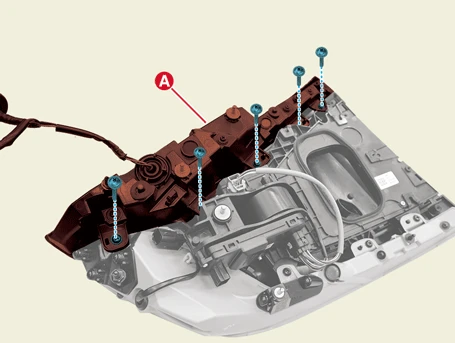

4.Remove the stop / tail lamp (A) after removing the screws.

Kia EV6. Charge Door Assembly

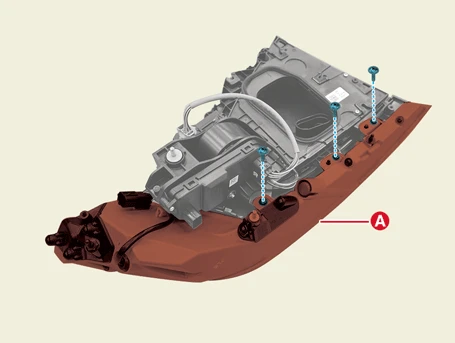

5.Remove the turn signal lamp (A) after removing the screws.

Kia EV6. Charge Door Assembly

Installation

1.Install in the reverse order of removal.

Kia EV6. Charge Door Assembly

If the charge door assembly is dropped, it may cause internal damage. (Do not reuse)

2.After replacing the charge door assembly and the related parts, vehicle should be checked that it charges normally.
