Kia EV6: Charge Door Module (CDM)

Removal

1.Remove the right outside rear combination lamp.(Refer to Body Electrical System - "Rear Combination Lamp")

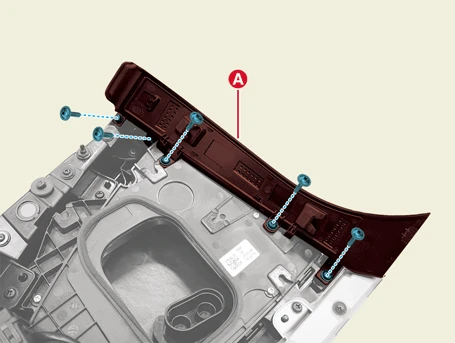

2.Remove the flange cover (A).

Kia EV6. Charge Door Module (CDM)

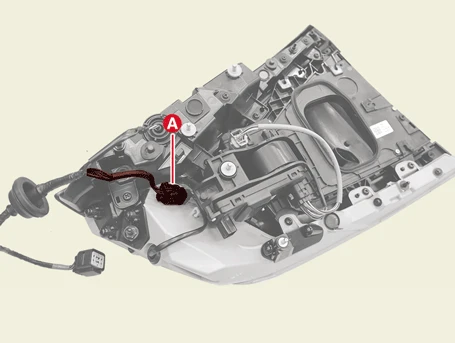

3.Disconnect the charge door control unit connector (A).

Kia EV6. Charge Door Module (CDM)

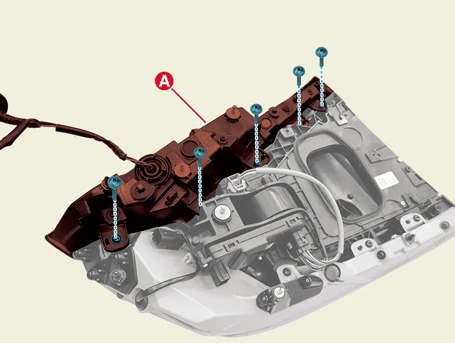

4.Remove the stop / tail lamp (A) after removing the screws.

Kia EV6. Charge Door Module (CDM)

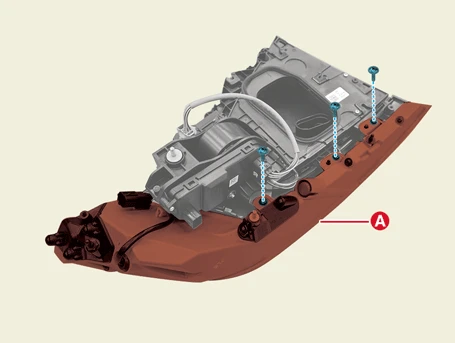

5.Remove the turn signal lamp (A) after removing the screws.

Kia EV6. Charge Door Module (CDM)

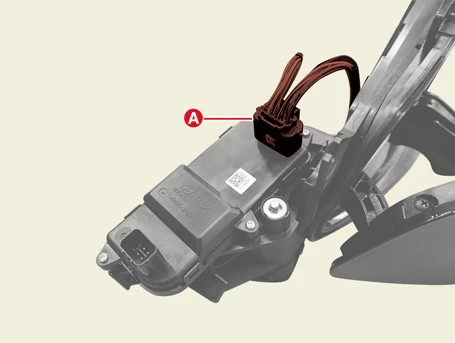

6.Disconnect the charge door module connector (A).

Kia EV6. Charge Door Module (CDM)

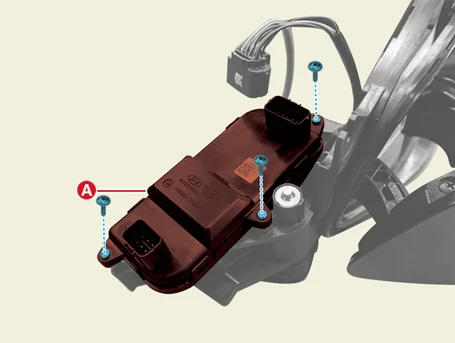

7.Remove the charge door module (A) after removing the screws.

Kia EV6. Charge Door Module (CDM)

Kia EV6. Charge Door Module (CDM)

Installation

1.Install in the reverse order of removal.

Kia EV6. Charge Door Module (CDM)

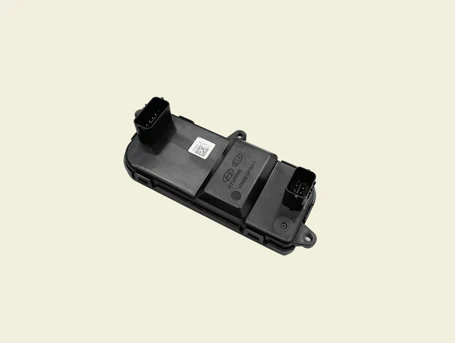

If the Charge Door Module (CDM) is dropped, it may cause internal damage. (Do not reuse)

2.After replacing the CDM and the related parts, vehicle should be checked that it charges normally.
