Kia EV6 (CV) 2022–2025 Workshop Manual

Restraint / SRSCM / Components and Components Location /

Kia EV6: Components and Components Location

Component

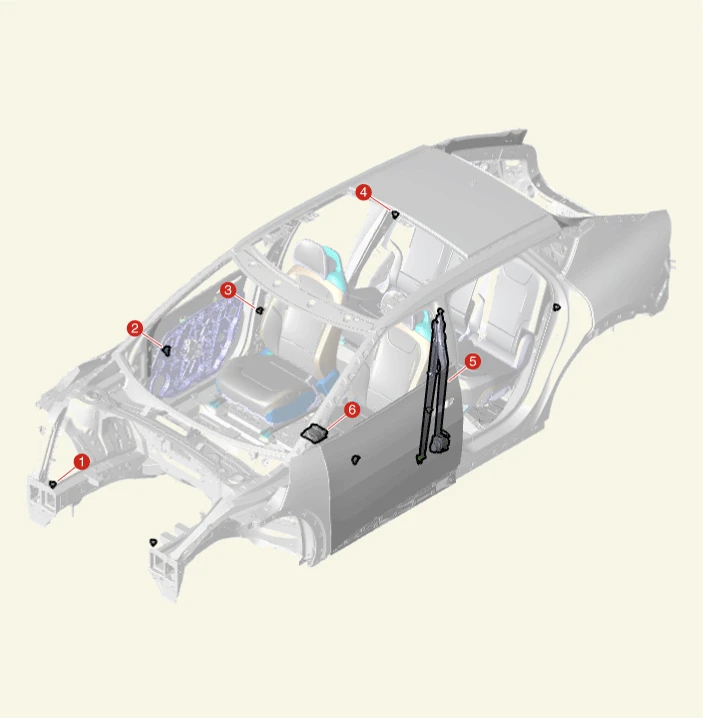

Kia EV6. Components and Components Location

1. Front Impact Sensor (FIS)
2. Pressure Type Side Impact Sensor (P-SIS)
3. Front Acceleration Type Side Impact Sensor (A-SIS)
4. Rear Acceleration Type Side Impact Sensor (A-SIS)
5. Front Seat Belt Pretensioner (BPT)
6. Supplemental Restraint System Control Module (SRSCM)

SRSCM

...

PREV

SRS Control Module (SRSCM)

Description • The SRS Control Module (SRSCM) determines whether and when to deploy the airbag module and the seat Belt Pretensioner (BPT). • It supplies the power required for deployment at ...
