Kia EV6: Components and Components Location

Component Location

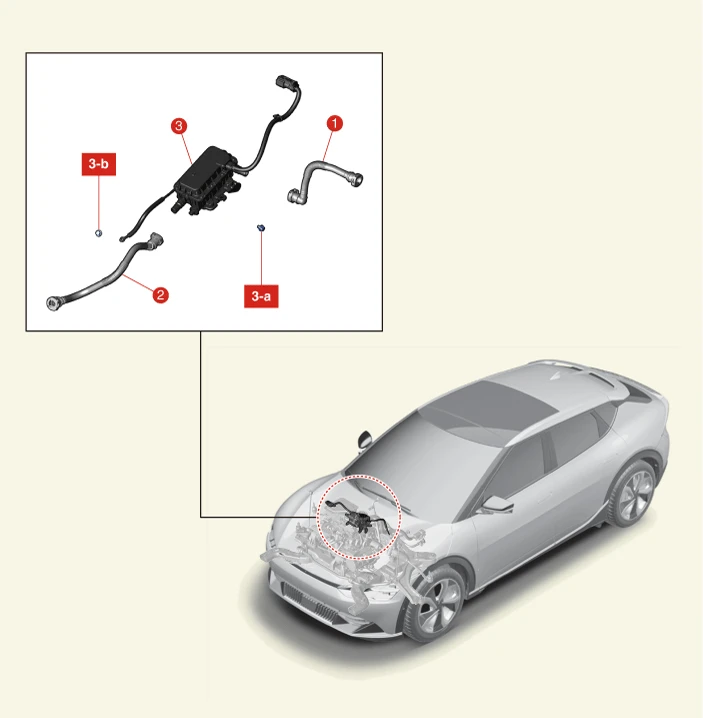

2WD

Kia EV6. Components and Components Location

1. Battery Heater Cooling Hose
2. Battery Heater Cooling Hose
3. Battery Heater
3-a. 6.9 - 9.8 N·m (0.7 - 1.0 kgf·m, 5.1 - 7.2 lb·ft)

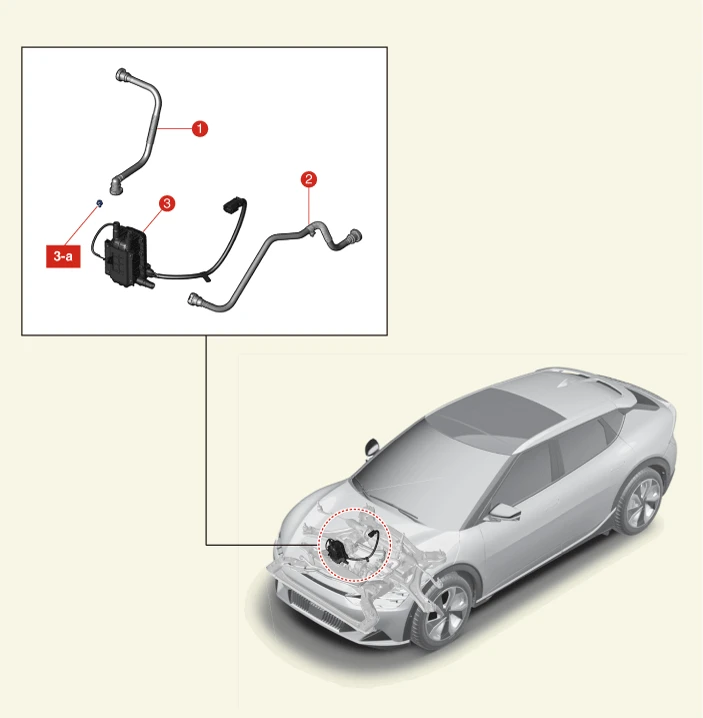

4WD

Kia EV6. Components and Components Location

1. Battery Heater Cooling Hose
2. Battery Heater Cooling Hose
3. Battery Heater
3-a. 6.9 - 9.8 N·m (0.7 - 1.0 kgf·m, 5.1 - 7.2 lb·ft)

Specification

Specification Item Specification Rated Voltage (V) DC 653 Rated Voltage (V) DC 450 - 774 Heater capacity (kW) 3.8 - 4. ...
