Kia EV6 (CV) 2022–2025 Workshop Manual

Body (Interior and Exterior) / Hood / Hood Latch Release Handle /

Kia EV6: Hood Latch Release Handle

Removal

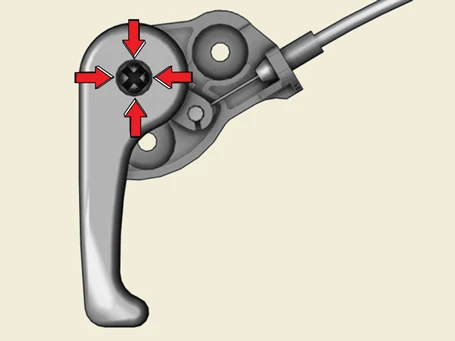

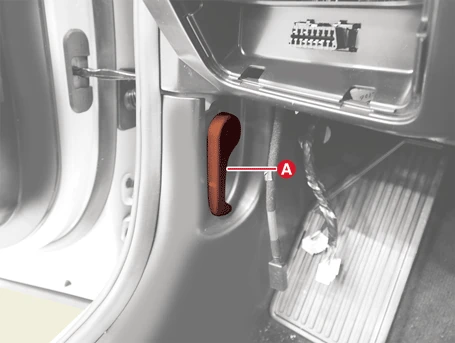

1.Remove the hood latch release handle (A) after retracting the fixing hook inside.

Kia EV6. Hood Latch Release Handle

Installation

1.Install in the reverse order of removal.

Kia EV6. Hood Latch Release Handle

• Make sure that connection of the hood latch release cable.

• Make sure that the hood locks / unlocks and opens / closes properly.
