Kia EV6 (CV) 2022–2025 Workshop Manual

Body (Interior and Exterior) / Tailgate / Repair procedures /

Kia EV6: Repair procedures

Adjustment

1.Place the car on a flat surface and check whether the body and tailgate are well-aligned.

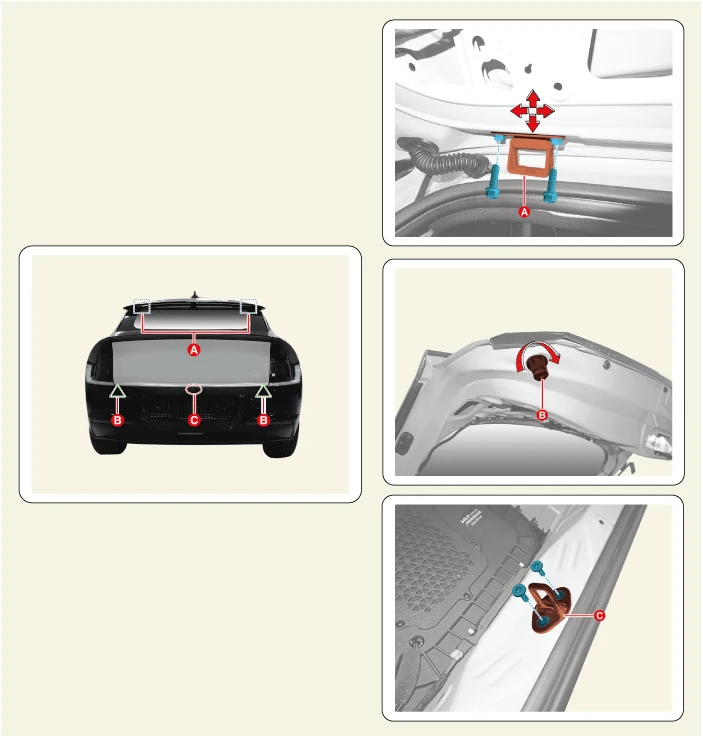

2.After removing the tailgate hinge (A) bolts, adjust the tailgate by moving it up and down or from side to side.

3.Adjust the gap between the tailgate and body by turning the tailgate overslam bumpers (B).

4.After removing the tailgate striker (C) bolts, adjust the striker by moving it back and forth or from side to side and tighten the bolts.

5.Make sure the tailgate opens or closes properly.
