Removal

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

Tailgate Lid Upper Trim

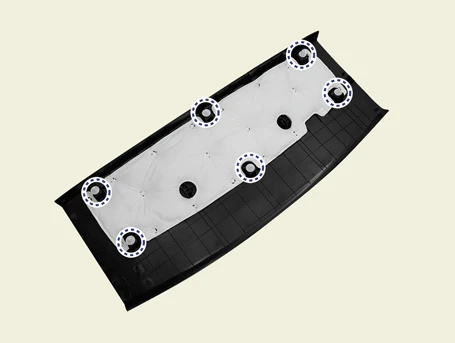

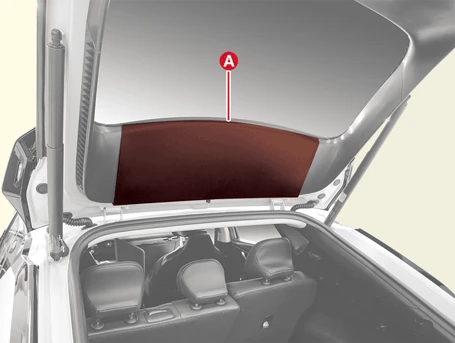

1.Remove the tailgate lid upper trim (A) after removing the clips.

Tailgate Lid Side Trim

1.Remove the tailgate lid upper trim.

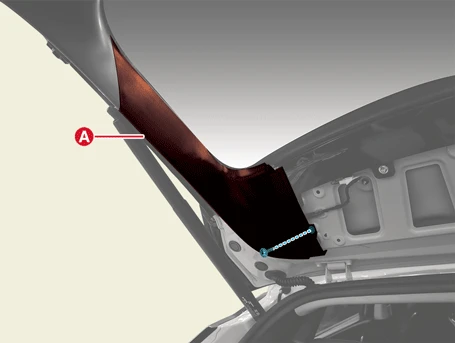

2.Remove the tailgate lid side trim (A) after removing the screw.

Tailgate Lid Lower Trim

1.Remove the tailgate lid side trim.

2.Remove the power tailgate inner switch.(Refer to Power Tailgate System - "Power Tailgate Switch")

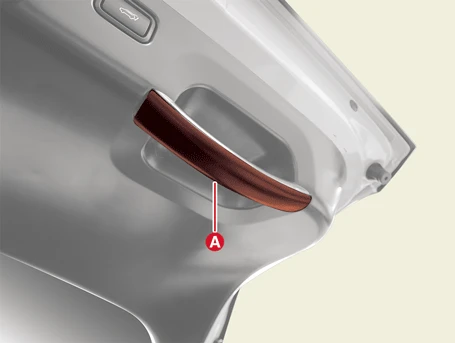

3.Remove the tailgate lid hand grip (A).

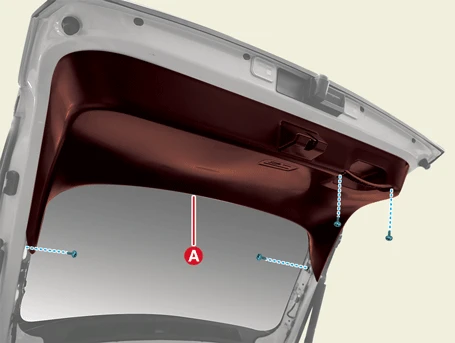

4.Remove the tailgate lid lower trim (A) after removing the screws.

Installation

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.
