Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
[LH]
1.Remove the rear door scuff trim.(Refer to Interior Trim - "Door Scuff Trim")
2.Remove the rear seat assembly.(Refer to Rear Seat - "Rear Seat Assembly")
3.Remove the rear transverse trim.(Refer to Tailgate Trim - "Rear Transverse Trim")

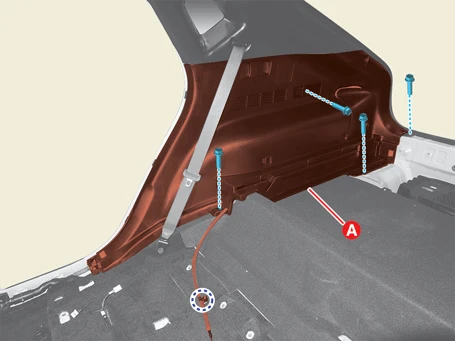

4.Remove the luggage side trim (A) after removing the bolts.

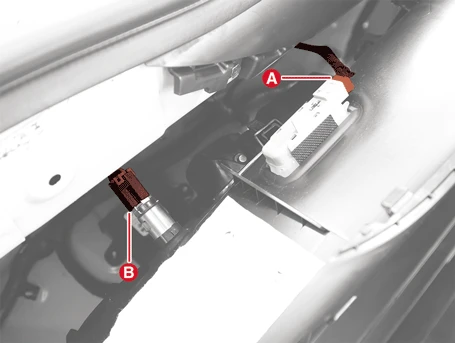

5.Disconnect the ruggage lamp connector (A) and accessory socket connector (B).
[RH]
1.Remove the rear door scuff trim.(Refer to Interior Trim - "Door Scuff Trim")
2.Remove the rear seat assembly.(Refer to Rear Seat - "Rear Seat Assembly")
3.Remove the rear transverse trim.(Refer to Tailgate Trim - "Rear Transverse Trim")

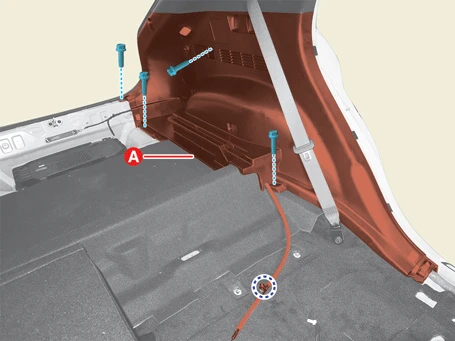

4.Remove the luggage side trim (A) after removing the bolts.
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
