Kia EV6: Rear Transverse Trim

Removal

1.Remove the tailgate weatherstrip(Refer to Tailgate - "Tailgate Weatherstrip")

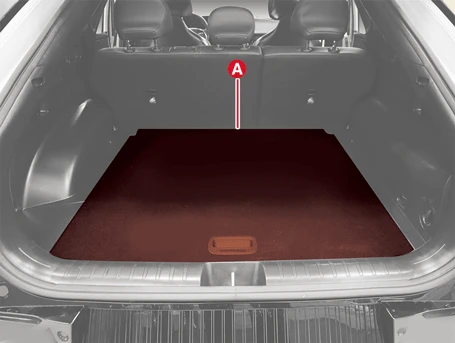

2.Remove the luggage covering board (A).

Kia EV6. Rear Transverse Trim

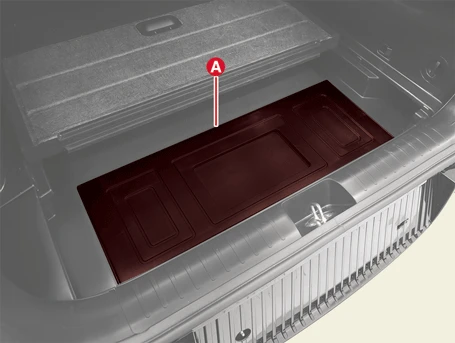

3.Remove the woofer speaker cover (A).

Kia EV6. Rear Transverse Trim

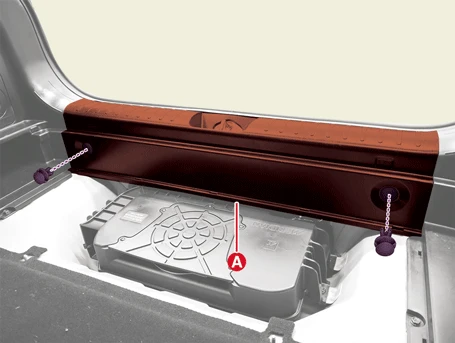

4.Remove the rear transverse trim (A) after removing the fasteners.

Kia EV6. Rear Transverse Trim

Kia EV6. Rear Transverse Trim

Kia EV6. Rear Transverse Trim

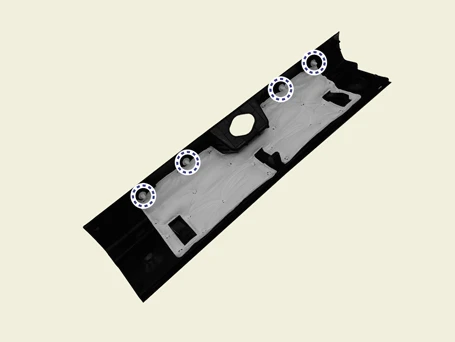

Clip position :

Kia EV6. Rear Transverse Trim

Installation

1.Install in the reverse order of removal.
