Kia EV6: Components and Components Location

Components

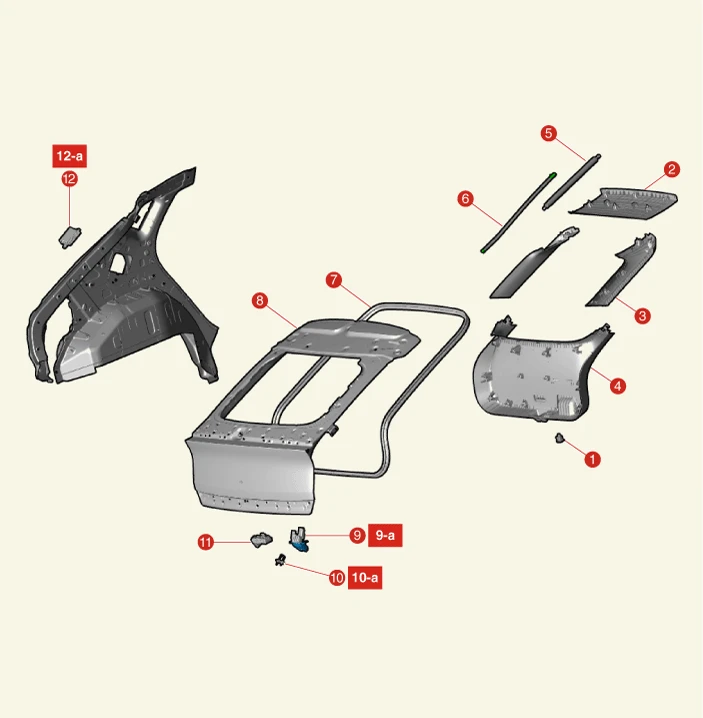

Kia EV6. Components and Components Location

1. Power Tailgate Inner Switch
2. Tailgate Lid Upper Trim
3. Tailgate Lid Side Trim
4. Tailgate Lid Lower Trim
5. Tailgate Lid Drive Unit
6. Tailgate Lid Drive Unit Strip
7. Tailgate Weatherstrip
8. Tailgate Assembly
9. Tailgate Latch
9-a. 6.9 - 8.8 N·m (0.7 - 0.9 kgf·m, 5.1 - 6.5 lb·ft, 60.8 - 78.1 lb·in)
10. Tailgate Striker
10-a. 21.6 - 26.5 N·m (2.2 - 2.7 kgf·m, 15.9 - 19.5 lb·ft)
11. Tailgate Outside Handle Switch
12. Power Tailgate Unit
12-a. 6.9 - 8.8 N·m (0.7 - 0.9 kgf·m, 5.1 - 6.5 lb·ft, 60.8 - 78.1 lb·in)
