Kia EV6: Components and Components Location

Component

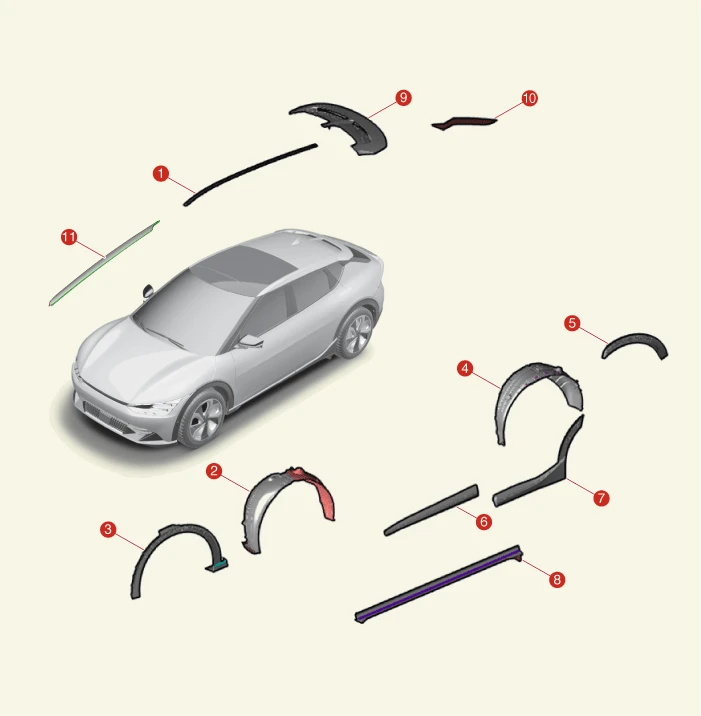

Kia EV6. Components and Components Location

1. Roof Side Molding
2. Front Wheel Guard
3. Fender Garnish
4. Rear Wheel Guard
5. Quarter Garnish
6. Front Door Garnish
7. Rear Door Garnish
8. Side Sill Molding
9. Rear Spoiler
10. C-Pillar Garnish
11. A-Pillar Garnish
