Kia EV6: Roof Side Molding

Removal

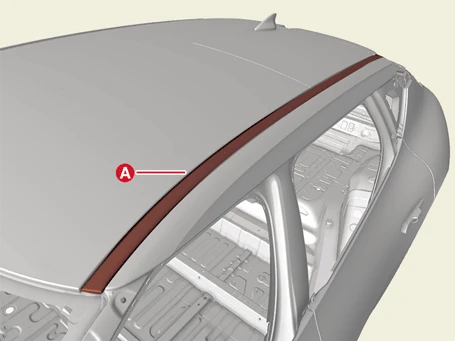

1.Remove the roof side molding (A).

Kia EV6. Roof Side Molding

Kia EV6. Roof Side Molding

Kia EV6. Roof Side Molding

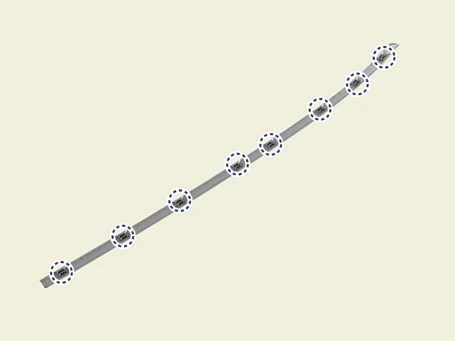

Clip position :

Kia EV6. Roof Side Molding

Installation

1.Install in the reverse order of removal.
