Removal
1.Remove the front wheel and tires.(Refer to Suspension System - "Wheel")

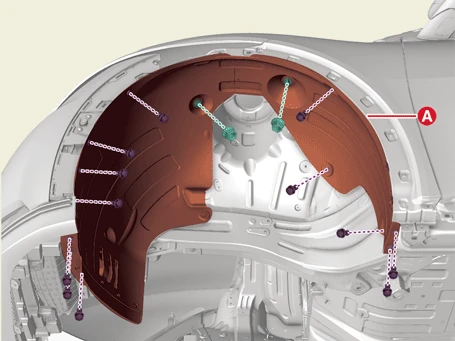

2.Remove the front wheel guard (A) after removing the nuts and fasteners.
Installation
1.Install in the reverse order of removal.
