Kia EV6: C Pillar Garnish

Removal

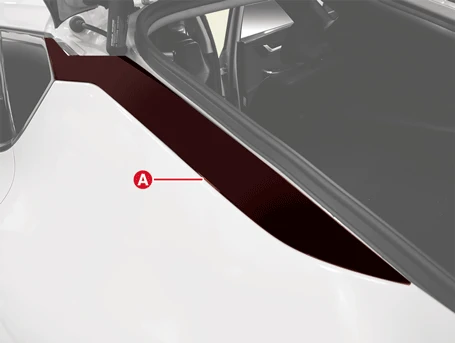

1.Remove the C-pillar garnish (A).

Kia EV6. C Pillar Garnish

Kia EV6. C Pillar Garnish

Kia EV6. C Pillar Garnish

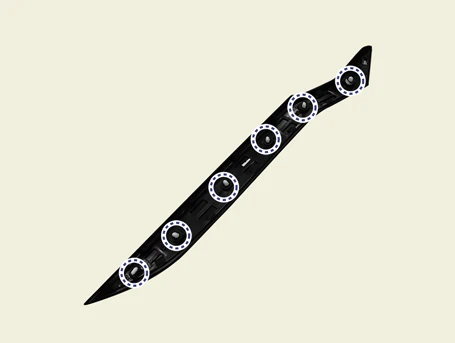

Clip position :

Kia EV6. C Pillar Garnish

Installation

1.Install in the reverse order of removal.
