Kia EV6: Door Scuff Trim

Removal

Front Door Scuff Trim

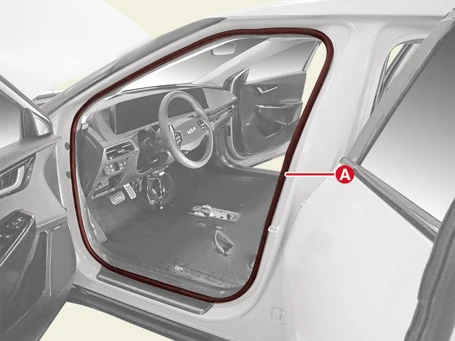

1.Remove the front door body side weatherstrip (A).

Kia EV6. Door Scuff Trim

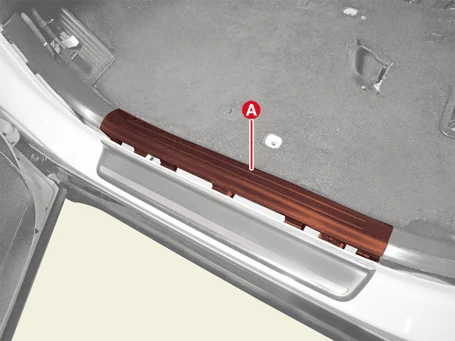

2.Remove the front door scuff trim (A).

Kia EV6. Door Scuff Trim

Kia EV6. Door Scuff Trim

Kia EV6. Door Scuff Trim

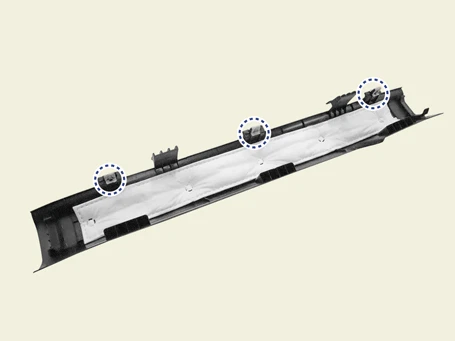

Clip position :

Kia EV6. Door Scuff Trim

Rear Door Scuff Trim

1.Remove the rear seat cushion.(Refer to Rear Seat - "Rear Seat Assembly")

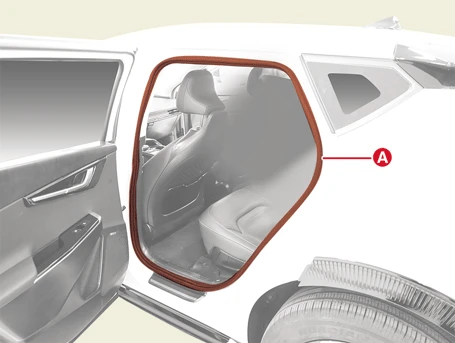

2.Remove the rear door body side weatherstrip (A).

Kia EV6. Door Scuff Trim

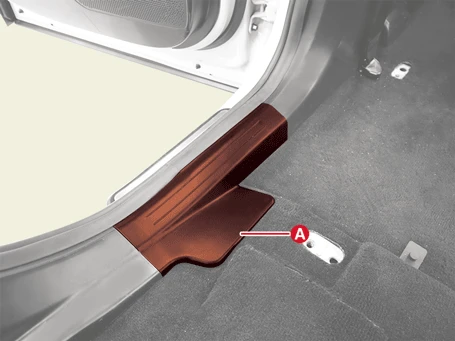

3.Remove the rear door scuff trim (A).

Kia EV6. Door Scuff Trim

Installation

1.Install in the reverse order of removal.
