Removal
1.Remove the front door scuff trim.(Refer to Body - "Door Scuff Trim")
2.Remove the hood latch release handle.(Refer to Hood - "Hood Latch Release Handle")

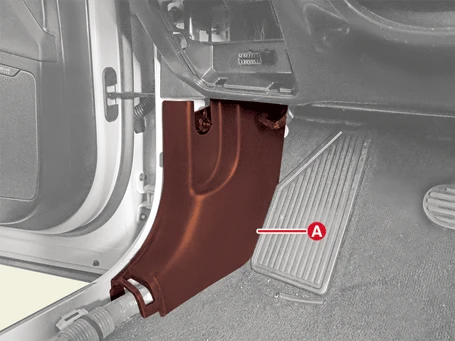

3.Remove the cowl side trim (A).

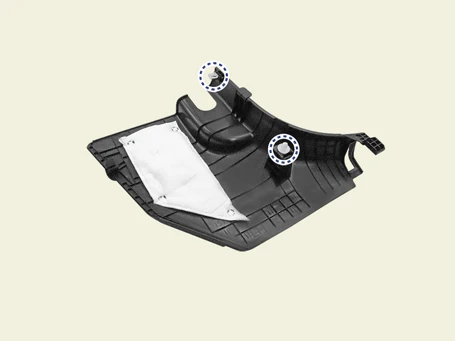

Clip position :
Installation
1.Install in the reverse order of removal.
Removal
Front Door Scuff Trim
1.Remove the front door body side weatherstrip (A).
2.Remove the front door scuff trim (A).
Clip position :
Rear Door Scuff Trim ...
PREV
Removal
Center Pillar Lower Trim
1.Remove the door scuff trim.(Refer to Body - "Door Scuff Trim")
2.Remove the center pillar lower trim (A).
Clip position : ...
