Kia EV6: Center Pillar Trim

Removal

Center Pillar Lower Trim

1.Remove the door scuff trim.(Refer to Body - "Door Scuff Trim")

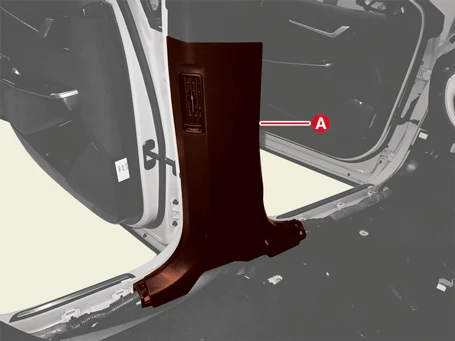

2.Remove the center pillar lower trim (A).

Kia EV6. Center Pillar Trim

Kia EV6. Center Pillar Trim

Kia EV6. Center Pillar Trim

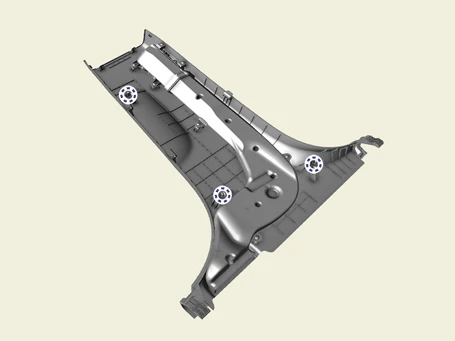

Clip position :

Kia EV6. Center Pillar Trim

Center Pillar Upper Trim

1.Remove the center pillar lower trim.

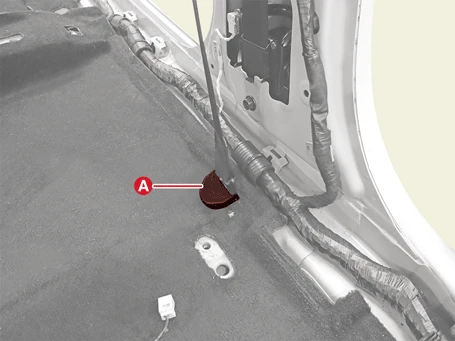

2.Remove the front seat belt lower anchor cover (A).

Kia EV6. Center Pillar Trim

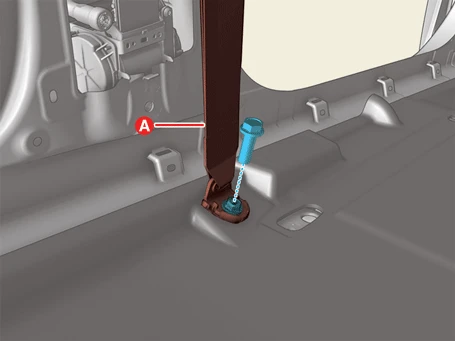

3.Remove the front seat belt lower anchor (A) after removing the bolt.

Kia EV6. Center Pillar Trim

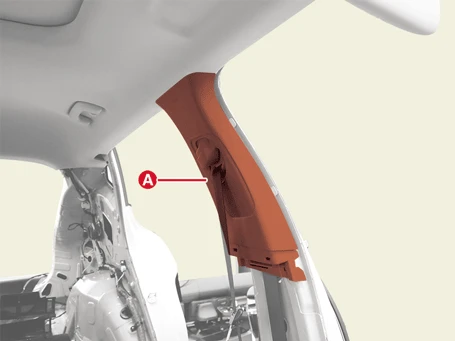

4.Remove the center pillar upper trim (A).

Kia EV6. Center Pillar Trim

Kia EV6. Center Pillar Trim

Kia EV6. Center Pillar Trim

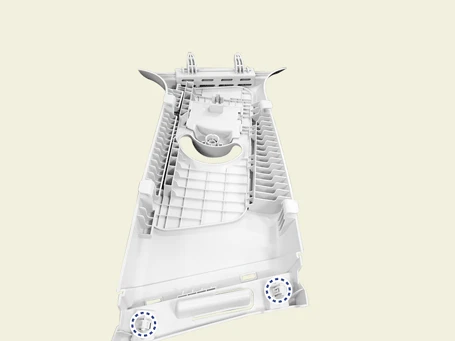

Clip position :

Kia EV6. Center Pillar Trim

Installation

1.Install in the reverse order of removal.
