Kia EV6: Components and Components Location

Component

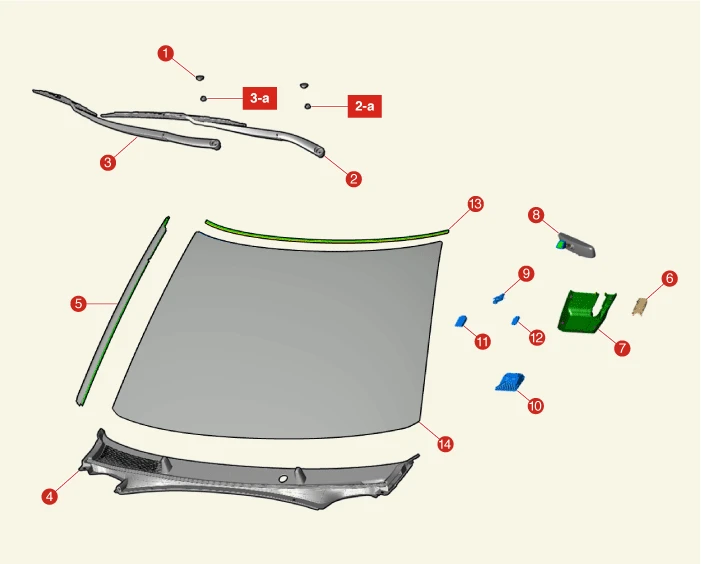

Kia EV6. Components and Components Location

1. * Windshield Wiper Arm Cap
2. * Windshield Wiper Arm Assembly [LH]
2-a. 22.6 - 26.5 N·m (2.3 - 2.7 kgf·m, 16.6 - 19.5 lb·ft)
3. * Windshield Wiper Arm Assembly [RH]
3-a. 22.6 - 26.5 N·m (2.3 - 2.7 kgf·m, 16.6 - 19.5 lb·ft)
4. * Cowl Top Cover Assembly
5. A-Pillar Garnish
6. Multi Sensor Blanking Cover
7. Multi Sensor Cover
8. Inside Rear View Mirror Assembly
9. Rain Sensor
10. Front View Camera Unit
11. Auto Defogging Sensor
12. Hi-pass Antenna
13. Wind Shield Upper Molding
14. Wind Shield Glass
