Removal

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Remove the steering wheel assembly.(Refer to Steering System - "Steering Wheel")

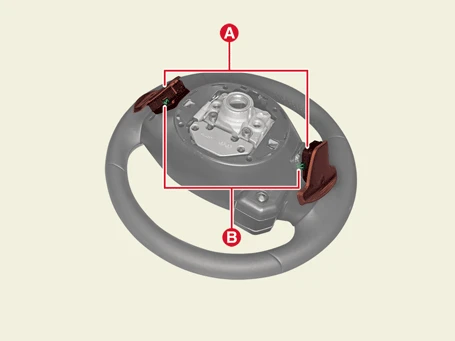

2.Remove the paddle shift switch screws (A).

3.Remove the paddle shift switch (A) after disconnecting the paddle shift connector (B).

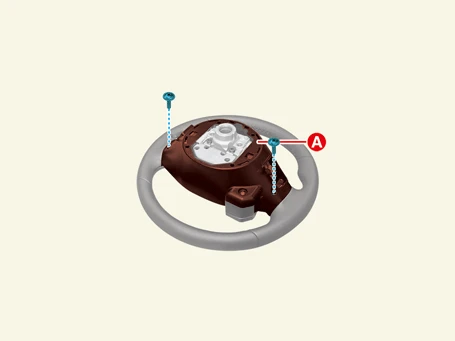

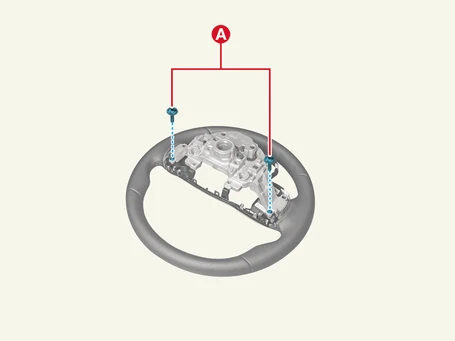

4.Remove the steering wheel lower cover screws (A).

5.Separate the steering wheel lower cover (A) after removing the screws.

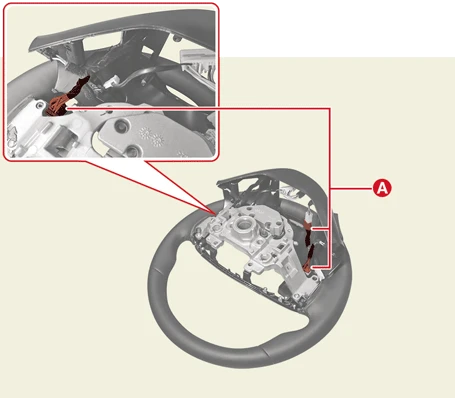

6.Disconnect the remote control switch connectors (A).

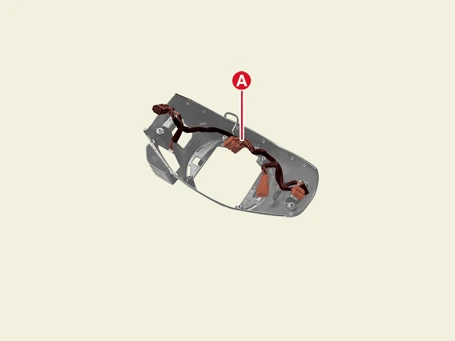

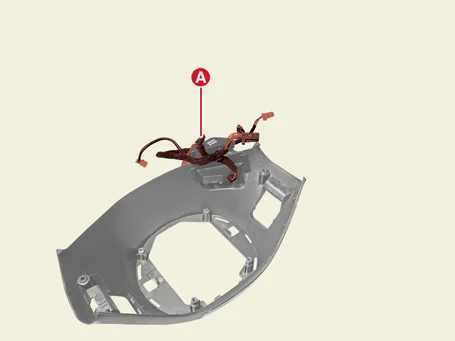

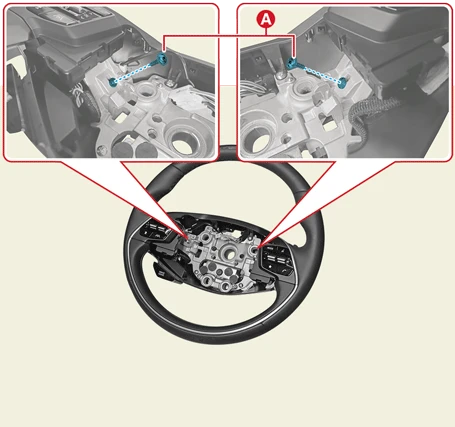

7.Remove the steering wheel extension wire (A).

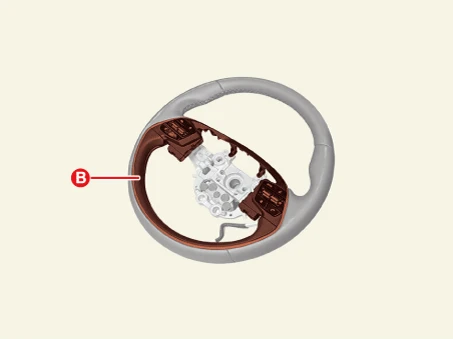

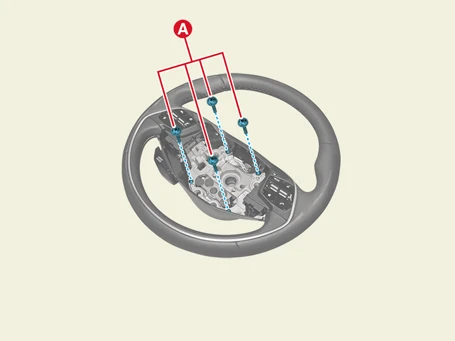

8.Remove the steering wheel bezel (B) after removing the screws (A).

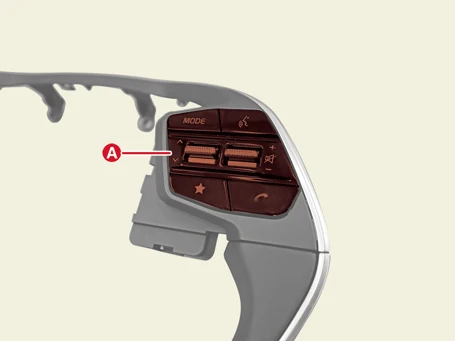

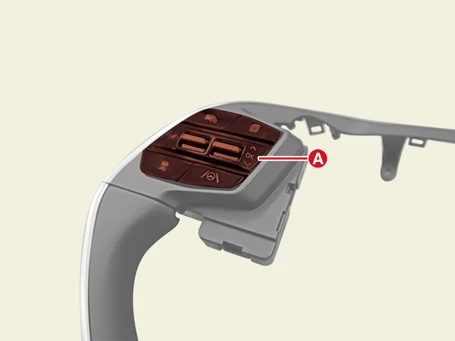

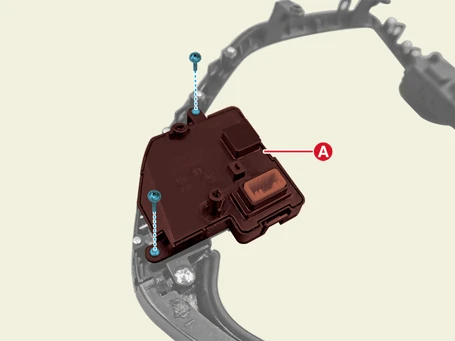

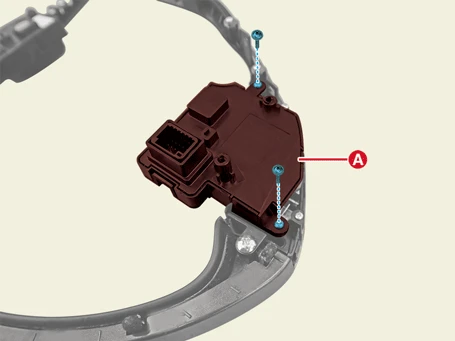

9.Remove the remote controller switch (A) after removing the screws.

[LH]

[RH]

Installation

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.
