Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
Roof Antenna
1.Remove the roof trim assembly.(Refer to Body - "Roof Trim Assembly")

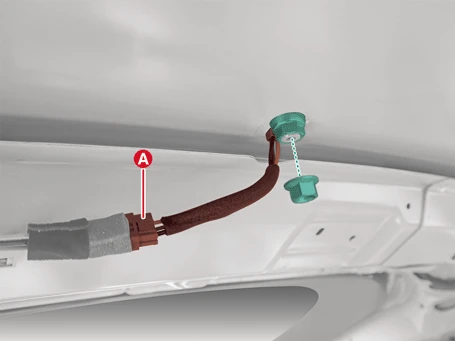

2.Remove the nut after disconnecting the roof antenna connector (A).
Tightening torque :7.8 - 14.7 N·m (0.8 - 1.5 kgf·m, 5.8 - 10.8 lb·ft)

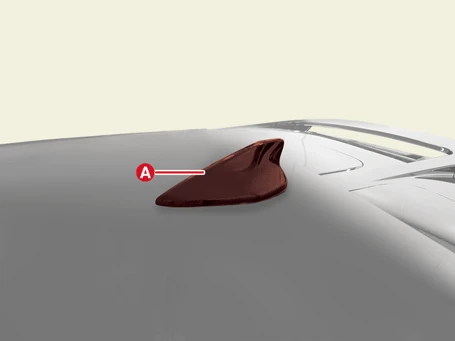

3.Remove the roof antenna (A).
Crash Pad Antenna
1.Remove the main crash pad assembly.(Refer to Body - "Main Crash Pad Assembly")

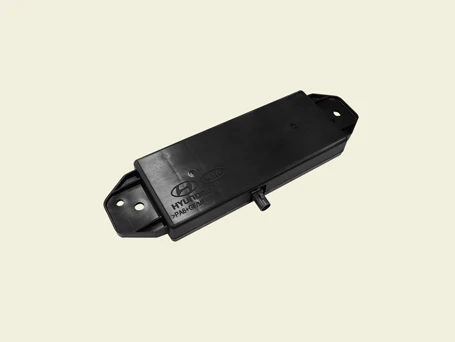

2.Remove the crash pad antenna.

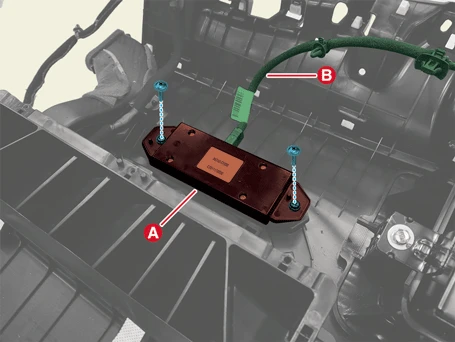

(1)Disconnect the crash pad antenna connector (B).
(2)Remove the crash pad antenna (A) after removing the screws.
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
