Kia EV6 (CV) 2022–2025 Workshop Manual

Maintenance / Chassis / Drive Shafts and Boots /

Kia EV6: Drive Shafts and Boots

Inspection

1.Check the drive shaft boots for loose clamps, cracks, grease leaks, kinks or damage.

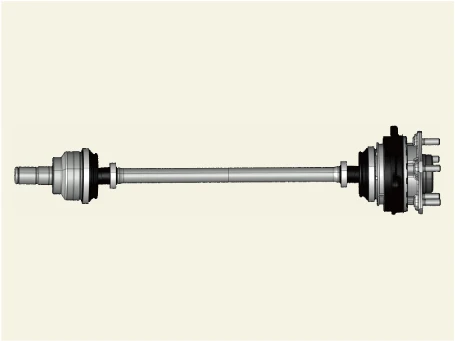

[Front - 4WD only]

Kia EV6. Drive Shafts and Boots

[Rear]

Kia EV6. Drive Shafts and Boots
