Removal

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

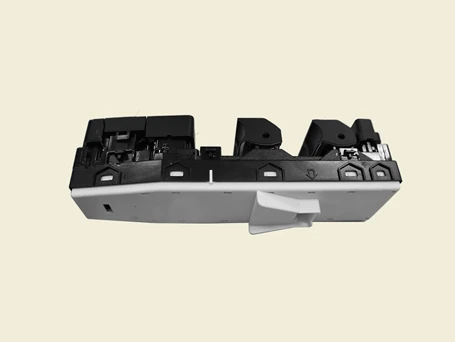

Power Window Main Switch

1.Remove the driver side front door trim.(Refer to Body - "Front Door Trim")

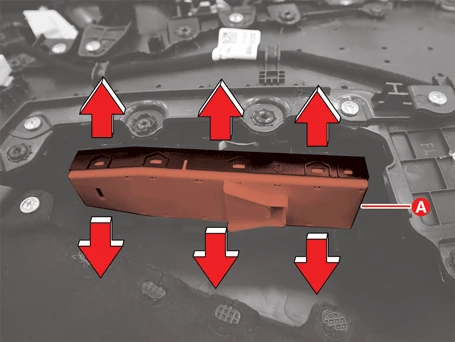

2.Remove the power window main switch (A) after pushing the hooks in the direction of arrow.

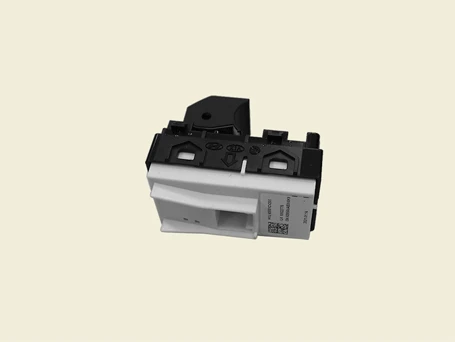

Power Window Sub Switch

1.Remove the passenger side front door trim.(Refer to Body - "Front Door Trim")

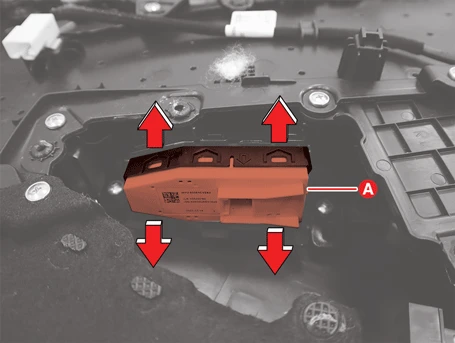

2.Remove the power window sub switch (A) after pushing the hooks in the direction of arrow.

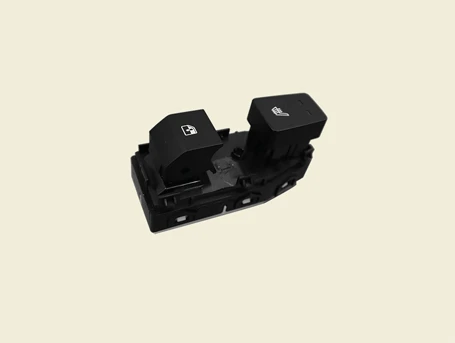

Power Window Rear Switch

1.Remove the rear door trim.(Refer to Body - "Rear Door Trim")

2.Remove the power window rear switch (A) after pushing the hooks in the direction of arrow.

Installation

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.
