Kia EV6 (CV) 2022–2025 Workshop Manual

Battery Control System (Standard) (EV Battery System) / Components and Components Location /

Kia EV6: Components and Components Location

Component

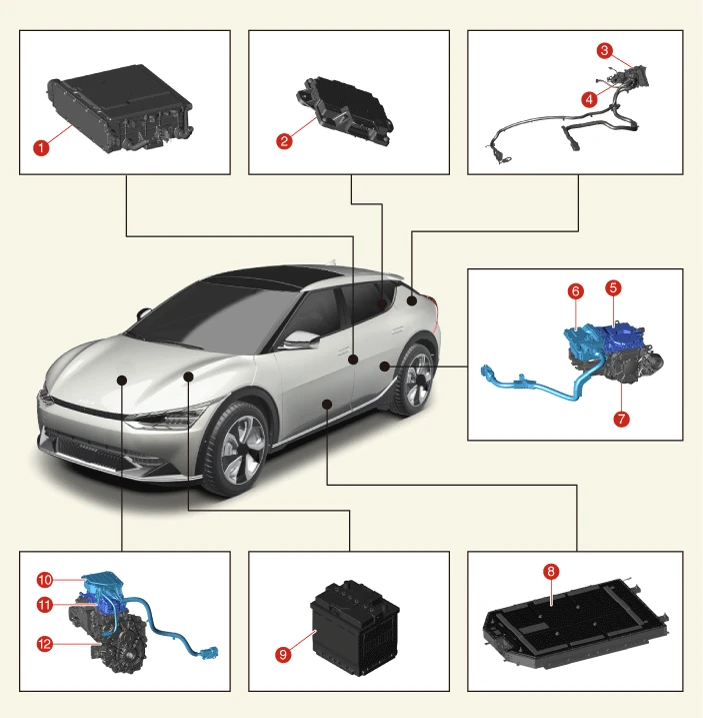

Kia EV6. Components and Components Location

1. Integrated Charging Control Unit (ICCU)
2. Vehicle Charge Management System (VCMS)
3. Charge Door Assembly
4. Combo Charger Inlet Assembly
5. Multi Inverter Assembly
6. Rear High Voltage Junction Box
7. Rear Motor & Reduction Gear Assembly
8. Battery System Assembly (BSA)
9. Auxiliary 12 V Battery
10. Front High Voltage Junction Box
11. Inverter Assembly (4WD)
12. Front Motor & Reduction Gear Assembly

Tightening Torque

Tightening Torque High Voltage Battery System Battery System Assembly (BSA) Item N·m kgf·m lb·ft lb·in Battery System Assembly (BSA) throu ...
