Kia EV6: Components and Components Location

Components Location

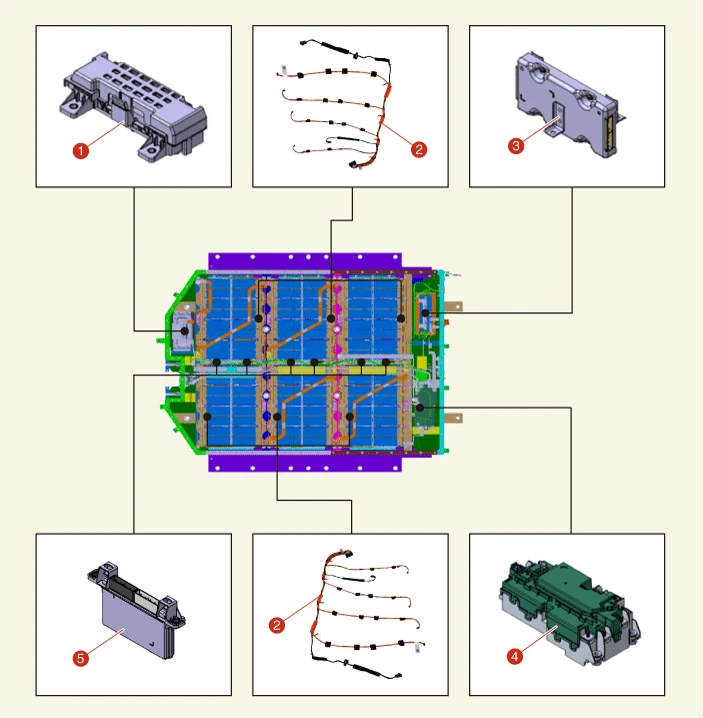

Kia EV6. Components and Components Location

1. Main Fuse
2. Voltage & Temperature Sensing Wiring
3. Battery Management Unit (BMU)
4. Power Relay Assembly (PRA)
5. Cell Monitoring Unit (CMU)
